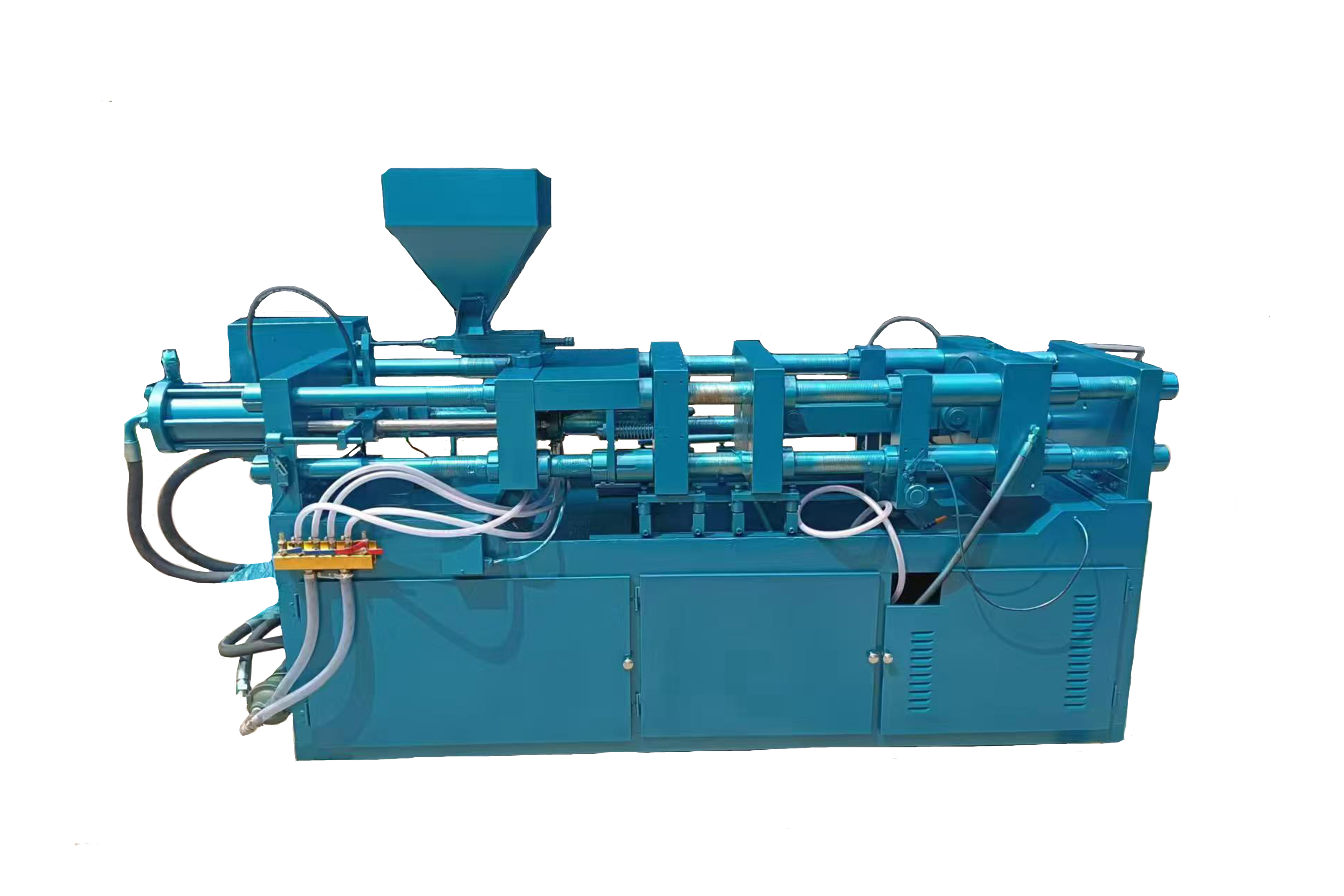

Christmas Tree Plastic PE Injection Molding Machine

Injection molding is the most cost-effective method for high-volume production of artificial Christmas tree branches. The process is highly customizable to meet a variety of branch styles, allowing for efficient and accurate production to meet demand.

Model:
2.5A DOUBLE COLOR
Brand:
ONE PLASTIC
Code:
RY-301

Availability:



Inquire

Product Description

PE Injection Mold Equipment

Pump diameter: 28 x 28mm

Pump length: 290mm

Injection quality: 22-28g for double color, 35g for single

Injection pressure: 2100psi

Mould Clamping Equipment

Mould clamping force: 1200psi

Toggle stroke: 215mm Max. mould thickness: 300mm

Min. mould thickness: 100mm

Bottom mould width: 400mm

Max. oil pump pressure: 2500psi

Motor power: 7.5kw

Heating power: 3.6kw for double color, 3.2kw for single color

Machine Dimensions and Weight

Machine dimensions: 2800 x 850 x 1300mm

Machine weight: 1780kg

Oil tank capacity: 75L

Working power: 380V 50-60HZ Four wire three phase
