Metalized PET Film: Properties and Uses

Views: 6     Author: Site Editor     Publish Time: 2023-05-24      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


1. Introduction


Metalized PET film, or metalized polyester film, is a versatile material that finds applications in various industries. With its unique properties and wide range of uses, metalized PET film has become popular in packaging, electronics, and decorative applications. This article will explore metalized PET film's properties, production process, applications, and advantages.


Metalized PET film is a type of polyester film that has been coated with a thin layer of metal, typically aluminum. The metal coating is applied to one side of the film using a vacuum metallization process. It involves evaporating the metal in a vacuum chamber and allowing it to condense onto the film's surface. This metalized layer provides the film with unique properties and characteristics that make it suitable for a wide range of applications.


2. What is Metalized PET Film?


Metalized PET film is a polyester film treated with a thin layer of metal, usually aluminum. The metal coating gives the film a reflective surface, providing various functional and aesthetic benefits. The film is made from polyethylene terephthalate (PET), a thermoplastic polymer widely used in the packaging industry due to its excellent mechanical properties, clarity, and barrier properties.

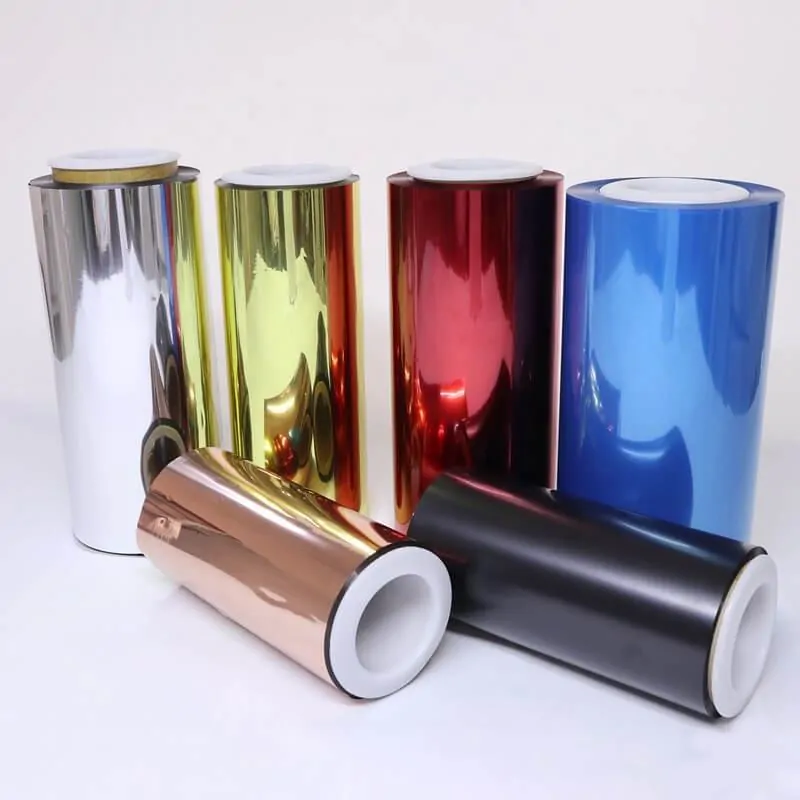

PET metalized film 10


3. Production Process of Metalized PET Film


The production process of metalized PET film involves several steps. First, the PET film is produced by extruding molten PET through a flat die and then rapidly cooling it to form a continuous sheet. The film is then stretched in machine and transverse directions to align the polymer chains and improve its mechanical properties.

Once the PET film is produced, it undergoes the metallization process. The film is placed in a vacuum chamber, and the metal (typically aluminum) is evaporated using an electron beam or resistance heating. The metal vapor then condenses onto the film's surface, forming a thin, uniform metal layer.


PET metalized film packing and delivery


4. Properties of Metalized PET Film


4.1 Optical Properties


Metalized PET film exhibits excellent optical properties, including high reflectivity and low transmittance. The metal coating on the film's surface reflects light, making it highly reflective and suitable for applications where a reflective surface is desired. The film also has low transmittance, which makes it effective in blocking light and UV radiation.


4.2 Mechanical Properties


PET film generally has excellent mechanical properties, and the metalized version inherits these properties. Metalized PET film offers good tensile strength, tear resistance, and dimensional stability. These properties make it suitable for applications that require strength and durability.


4.3 Barrier Properties


Metalized PET film provides excellent barrier properties against moisture, gases, and odors. The metal layer acts as a barrier, preventing the transmission of these substances through the film. This makes metalized PET film a preferred choice for packaging applications where protection against moisture and oxygen is crucial.


4.4 Thermal Properties


Metalized PET film has good thermal stability and can withstand high temperatures without deformation. It also has low thermal conductivity, which makes it suitable for applications requiring insulation properties. The film can be laminated with other materials to enhance its thermal properties further.


5. Applications of Metalized PET Film


Metalized PET film finds applications in various industries due to its unique properties. Some of the standard applications include:


5.1 Packaging Industry


Metalized PET film is widely used in the packaging industry for flexible packaging, labels, and pouches. The reflective surface of the film adds an attractive and premium appearance to the packaging. It also provides excellent barrier properties, protecting the contents from moisture, gases, and UV radiation.


5.2 Electronics Industry


In the electronics industry, metalized PET film is used for applications such as flexible printed circuits, electromagnetic shielding, and insulation. The film's high reflectivity and low transmittance properties make it suitable for reflective insulation and light control in electronic devices.


5.3 Decorative Purposes


Metalized PET film is also utilized for decorative purposes, such as gift wrapping, ribbons, and party decorations. The film's reflective surface adds a shiny and eye-catching element to the decorations, enhancing their visual appeal.


5.4 Solar Control Films


Metalized PET film can be used to produce solar control films, designed to regulate heat and light transmission in buildings and vehicles. The film's reflective properties help to reduce solar heat gain and glare, improving energy efficiency and comfort.


6. Advantages of Metalized PET Film


Metalized PET film offers several advantages compared to other film materials:


  • High reflectivity and low transmittance properties

  • Excellent barrier properties against moisture, gases, and odors

  • Good mechanical strength and dimensional stability

  • Thermal stability and insulation properties

  • Versatility in applications across multiple industries


7. Challenges and Limitations


While metalized PET film has many advantages, it also faces some challenges and limitations. The metal coating on the film's surface can be susceptible to scratching and abrasion, which may affect its reflective properties. Additionally, the metal layer adds to the overall cost of the film compared to plain PET film. These factors must be considered when selecting metalized PET film for specific applications.


8. Comparison with Other Film Materials


Metalized PET film offers unique properties that differentiate it from other film materials. Metalized PET film enhances reflectivity and barrier properties compared to plain PET film. It also outperforms other metalized film materials in terms of cost-effectiveness, optical clarity, and ease of processing.


9. Environmental Considerations


Metalized PET film can be recycled and is considered a sustainable option compared to some other film materials. However, the recycling process for metalized PET film is more complex due to the presence of the metal coating. Proper recycling infrastructure and procedures are required to separate the metal layer from the film for efficient recycling.


10. Conclusion


Metalized PET film is a versatile material with a wide range of applications. Its unique properties, including high reflectivity, barrier properties, and mechanical strength, make it suitable for packaging, electronics, and decorative purposes. Despite some challenges and limitations, metalized PET film offers numerous advantages and is a popular choice in various industries.


One of the primary advantages of metalized PET film is its suitability for packaging applications. The film's high tensile strength and resistance to punctures and tears make it ideal for protecting sensitive products like food, pharmaceuticals, and electronics. The metalized coating not only adds an attractive metallic finish but also provides a barrier against light and oxygen, preserving the freshness and extending the shelf life of packaged goods.


Furthermore, metalized PET film finds extensive use in the electrical and electronics industry. Its superior electrical insulation properties make it a preferred choice for applications such as flexible printed circuits, electromagnetic shielding, and cable wrapping. The metalized layer on the film enhances its conductivity and electromagnetic interference (EMI) shielding capabilities, ensuring efficient performance and protection of electronic components.


In conclusion, metalized PET film's unique properties and versatile nature make it invaluable in multiple industries. Its strength, flexibility, thermal stability, and barrier properties make it an excellent choice for packaging applications, while its electrical insulation and EMI shielding properties cater to the needs of the electrical and electronics sector. As technology advances, metalized PET film will likely find even broader applications, contributing to developing innovative and sustainable solutions in various fields.
