Polycarbonate vs PETG: Which Plastic Sheet Is Better?

Introduction

Polycarbonate (PC) and PETG are both common transparent engineering plastic sheets, which are widely used for machine guards, equipment housings, transparent partitions, display stands, and thermoformed parts. Although both materials offer excellent transparency and impact resistance, they differ significantly in terms of strength, temperature resistance, chemical resistance, thermoforming characteristics, and processing costs.

Therefore, when comparing Polycarbonate and PETG, which plastic sheet is better suited for your project? This article compares the two materials across aspects such as performance, processing methods, applications, and costs to help purchasers and engineers select the right transparent plastic sheet.

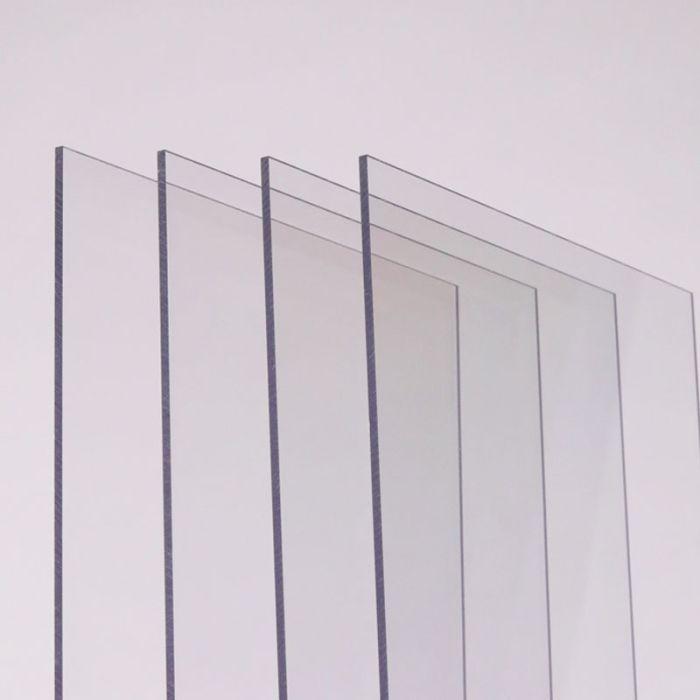

What Is Polycarbonate Sheet?

Polycarbonate sheet is a kind of high-strength and transparent engineering plastic. One of its key characteristics is exceptional impact resistance, combined with good dimensional stability and heat resistance.

Key Properties of Polycarbonate Sheet

Polycarbonate sheets are typically suitable for applications requiring high mechanical strength, safety protection, and operating temperature—such as machine guards, safety barriers, equipment windows, and transparent industrial components.

Key features:

Excellent impact resistance

Good transparency

High heat resistance

Good machinability

Suitability for industrial protective applications

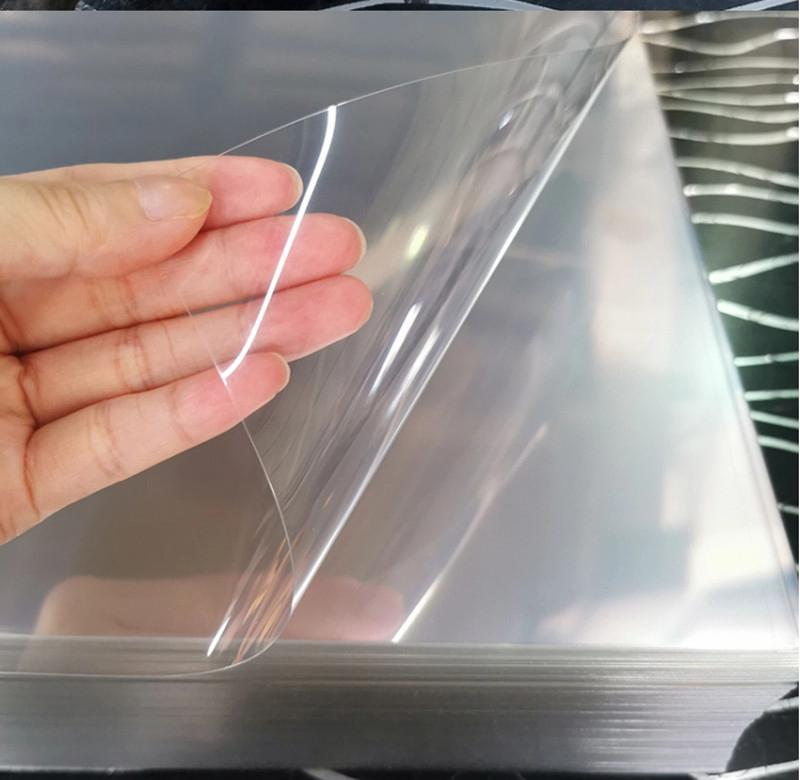

What Is PETG Sheet?

PETG sheet is a transparent copolyester sheet. Compared to polycarbonate, PETG typically assures good transparency and toughness, as well as more favorable thermoforming characteristics.

Key Properties of PETG Sheet

PETG is particularly suitable for projects requiring thermoforming, bending, display capabilities, and a transparent appearance—such as POP displays, transparent protective covers, equipment housings, and complex thermoformed parts.

Key features:

Excellent transparency

Good impact resistance

Ease of thermoforming

Good machinability and formability

Suitability for complex and transparent parts

Polycarbonate vs PETG: Quick Comparison

Actual performance varies depending on the material grade, thickness, and manufacturer specifications, therefore, final material selection should be based on the specific product's Technical Data Sheet (TDS) rather than solely on the material name.

Polycarbonate vs PETG Impact Resistance

Is Polycarbonate Stronger Than PETG?

Polycarbonate is generally the more suitable choice for high-impact applications. Thanks to its excellent impact resistance, it is frequently used in industrial environments where materials must withstand collisions or mechanical impacts.

PETG also offers good toughness, but polycarbonate generally offers greater advantages when high-impact protection is the primary requirement, such as for machine guards and safety barriers.

Polycarbonate vs PETG Transparency

Both materials offer excellent optical clarity, so it cannot simply be assumed that PETG or PC is "more transparent" in every situation.

Actual transparency is influenced by the material grade, sheet thickness, surface finish, manufacturing process, and operating environment. Both materials are worth considering for displays, transparent equipment windows, and protective covers.

Polycarbonate vs PETG Chemical Resistance

The chemical environment is a factor easily overlooked during material selection.

Polycarbonate and PETG exhibit different levels of resistance to various chemical substances. PETG may perform well in certain chemical environments, while Polycarbonate is susceptible to stress cracking when exposed to specific solvents or cleaning agents.

Therefore, for projects involving long-term exposure to acids, alkalis, alcohols, cleaning agents, or other chemicals, it is essential to consult material chemical resistance data based on the specific substance, concentration, temperature and duration of exposure.

Polycarbonate vs PETG Temperature Resistance

In high-temperature environments, polycarbonate (PC) generally offers better heat resistance than PETG.

This is why PC is frequently used for industrial equipment, protective guards, and mechanical components.

However, it is important to distinguish between the two:

Operating Temperature ≠ Thermoforming Temperature

The fact that a material can function in high-temperature environments does not mean it is easier to thermoform.

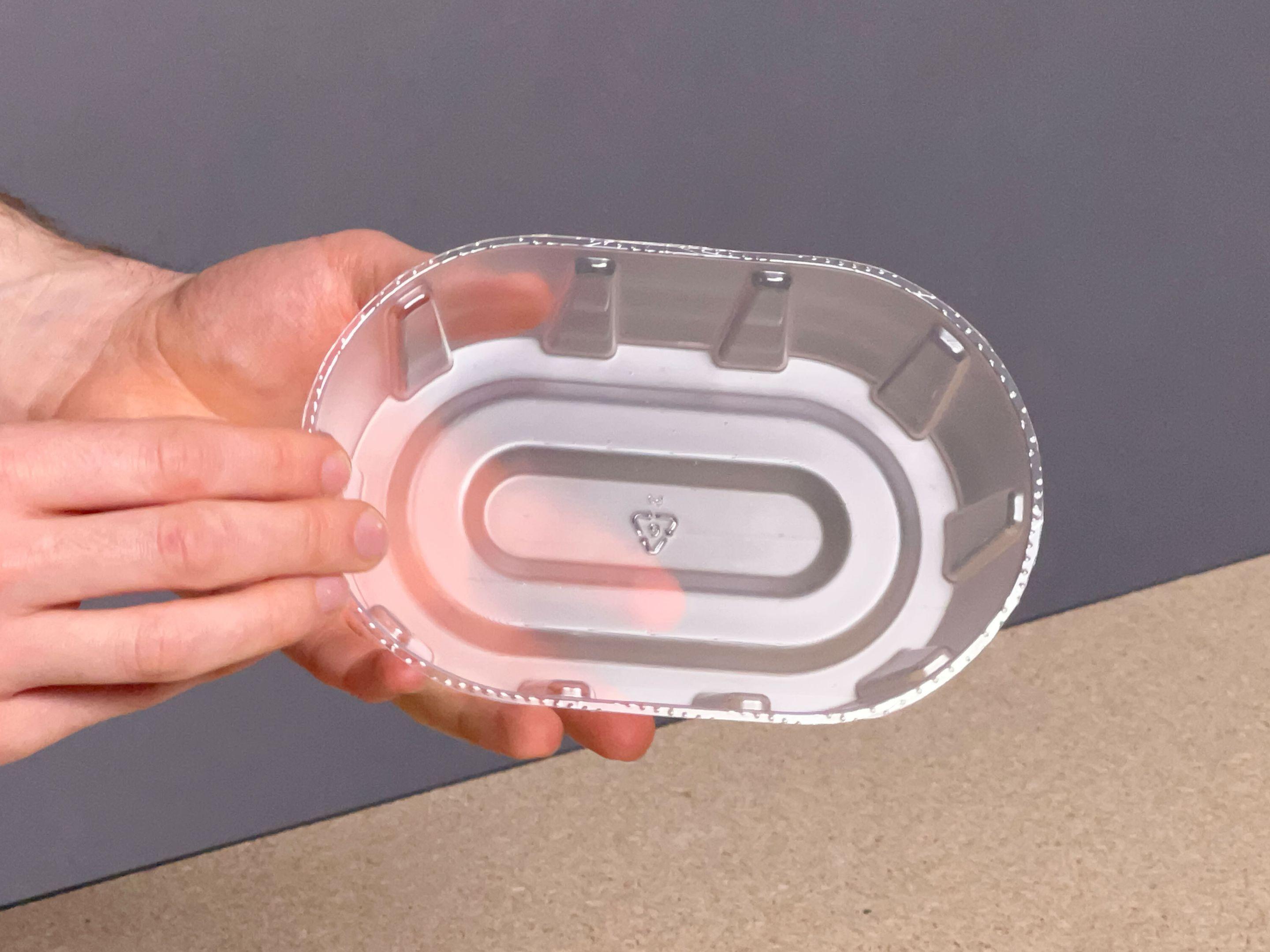

Polycarbonate vs PETG for Thermoforming

Is PETG Easier to Thermoform?

In General, PETG offers favorable thermoforming characteristics, making it highly suitable for producing complex shapes, transparent housings, and display components.

Polycarbonate can also be thermoformed, but the process typically requires stricter control over material drying, heating, and forming conditions.

Therefore, if the project prioritizes complex thermoforming and ease of processing, PETG is usually the preferred choice.

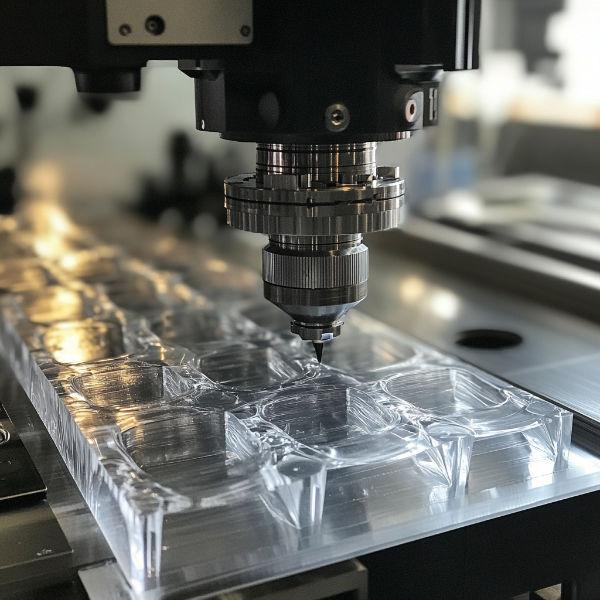

Polycarbonate vs PETG for Machining and Fabrication

Both polycarbonate and PETG can be cut, CNC machined, drilled, milled, and bent, though specific processing parameters must be adjusted based on material thickness and equipment.

If the project involves extensive CNC machining, drilling or industrial manufacturing, you should comprehensively consider:

Cutting speed, tooling, sheet thickness, dimensional tolerances, surface quality and the method of final assembly.

Do not make your choice based solely on the unit price of the materials.

Polycarbonate vs PETG Cost

Is PETG Cheaper Than Polycarbonate?

The actual purchase prices of PETG and polycarbonate are influenced by factors such as grade, thickness, dimensions, order volume, surface finish, and certification requirements; therefore, it cannot be assumed that one material is consistently cheaper than the other.

 For B2B procurement, it is more important to compare:

Material Cost + Processing Cost + Scrap Rate + Service Life = Total Cost

For instance, PETG may be easier to thermoform, thereby reducing processing complexity for certain intricate molding projects, whereas the superior strength and heat resistance of polycarbonate may offer a longer service life for industrial protective applications.

Polycarbonate vs PETG Applications

When selecting materials, you can work backward from the end-use application:

Polycarbonate sheet is better suited for:

Machine guards, safety barriers, equipment housings, protective windows, and industrial components requiring high impact resistance and temperature tolerance.

PETG sheet is better suited for:

POP displays, retail displays, transparent covers, complex thermoformed parts, signage, and applications requiring good clarity and ease of fabrication.

Polycarbonate vs PETG: Pros and Cons

The primary advantages of polycarbonate are its high impact resistance, good heat resistance, and industrial protective capabilities; and its drawbacks include stricter processing requirements and the need to consider specific chemical environments.

The main advantages of PETG are its high transparency, good toughness, and ease of thermoforming and processing; however, for applications involving high temperatures or extreme impact requirements, , the ability to meet design specifications should be carefully evaluated.

How to Choose Between PETG and Polycarbonate Sheet

When choosing between PETG and Polycarbonate, one should look beyond just the price. Purchasers should first clarify the following factors:

End-use application → Impact requirements → Operating temperature → Chemical environment → Processing method → Sheet thickness and dimensions → Total cost.

If high impact resistance and heat resistance are the primary requirements, Polycarbonate is the preferred choice. However, if transparency, thermoformability, and complex processing capabilities are the main priorities, PETG is often a highly competitive option.

FAQ About Polycarbonate vs PETG

Is PETG stronger than polycarbonate?

Usually not. For high-impact applications, polycarbonate typically offers a more distinct advantage, but the final determination should be based on data for the specific grade.

Is PETG clearer than polycarbonate?

Both can exhibit excellent transparency, and the actual optical performance depends on the grade, thickness, and surface quality.

Is PETG cheaper than polycarbonate?

Not necessarily. Prices are influenced by specifications, quantities, grades, and processing requirements, and the total project cost should be compared.

Which is better for thermoforming?

For complex thermoforming applications, PETG is generally easier to process.

Which is better for machine guards?

If the machine guard requires high impact resistance and heat resistance, Polycarbonate is usually more suitable.

Can PETG replace polycarbonate?

It is suitable for some applications but cannot serve as a direct replacement. Factors such as impact, temperature, chemical environment, and structural requirements need to be re-evaluated.

Can polycarbonate replace PETG?

There is no one-size-fits-all answer. If the project relies on the thermoforming and processing characteristics of PETG, practical testing should be conducted before switching materials.

Final Verdict: PETG or Polycarbonate?

There is no absolute winner between polycarbonate and PETG, and the choice depends on the end-use application. Polycarbonate is better suited for industrial environments requiring high impact resistance, high strength, and the ability to withstand higher temperatures, whereas PETG offers distinct advantages in terms of optical clarity, complex thermoforming capabilities, and ease of processing.

For industrial plastic purchasers, the right approach is not simply to seek out the "best material," but rather to select the most suitable Polycarbonate or PETG sheet based on factors such as impact strength, transparency, operating temperature, chemical environment, processing methods, dimensions, and total cost.
