Anti-Static PVC Strip Curtains

Anti-static PVC strip curtains are a specialized type of flexible doorway barrier designed to prevent electrostatic discharge (ESD) in environments where static-sensitive components, equipment, or processes are present. They look and hang like standard PVC strip curtains, but the material is formulated with an anti-static additive that dissipates surface charge rather than allowing it to build up.

This is not a general-purpose strip curtain page. If you need standard PVC strip curtains for temperature zoning, dust control, or general doorway barriers, see our main PVC curtain strip product range. This page is specifically about anti-static PVC strip curtains for ESD-sensitive applications.

ONE PLASTIC manufactures anti-static PVC strip curtains for electronics production facilities, cleanrooms, laboratories, pharmaceutical environments, and any workspace where uncontrolled static discharge could damage components or compromise product quality.

What Anti-Static PVC Strip Curtains Are Used For

Standard PVC strip curtains generate static electricity through friction - every time a person, cart, or forklift passes through, the strips rub together and against whatever passes between them. In most warehouses, food plants, or loading docks, this static buildup is harmless.

But in ESD-sensitive environments, that static charge is a real problem:

• A static discharge of just 100 volts can damage sensitive semiconductor components

• A person walking through standard PVC strips can generate thousands of volts of static

• Even undamaged components exposed to static may develop latent defects that cause field failures later

Anti-static PVC strip curtains solve this by incorporating an anti-static agent into the PVC compound that continuously dissipates charge to prevent buildup. The strips still provide the same doorway barrier function - dust control, temperature separation, visual screening - but without the static risk.

Why Anti-Static PVC Matters in ESD-Sensitive Areas

The difference between standard and anti-static PVC strip curtains comes down to surface resistivity - the material's ability to hold or dissipate electrical charge.

In practical terms: if your facility has ESD-protected areas (EPA), ESD work zones, or any area aligned with IEC 61340 or ANSI/ESD S20.20 practices, anti-static strip curtains can be specified for doorway barriers. Using standard PVC strip curtains in these areas introduces a potential static source at the exact point where people and materials move in and out - the highest-traffic, highest-risk location.

Typical Applications

Electronics Manufacturing and Assembly

SMT lines, PCB assembly areas, semiconductor handling zones, component storage rooms, and test labs. Anti-static strip curtains are installed at doorways between ESD-protected production areas and adjacent corridors, warehouses, or non-EPA zones.

Cleanrooms and Controlled Environments

ISO Class 5-8 cleanrooms, pharmaceutical production rooms, and medical device manufacturing areas. Anti-static PVC strips serve as a secondary barrier at personnel and material pass-through points, reducing both particle ingress and static charge.

Laboratories

Electronics testing labs, calibration labs, chemical labs handling static-sensitive reagents, and research facilities with sensitive measurement equipment. Strip curtains at lab doorways maintain environmental separation while allowing easy pass-through.

Data Centers and Server Rooms

Doorways and aisle containment barriers in server rooms and data centers where static discharge could damage networking equipment, storage devices, or server components.

Pharmaceutical and Medical

Packaging lines, filling rooms, and inspection areas where static can attract particulate contamination to products or interfere with sensitive weighing, counting, and inspection equipment.

Printing and Packaging

High-speed printing, laminating, and packaging lines where static buildup causes sheet feeding problems, ink misting, dust attraction, and product quality issues.

Available Sizes and Specifications

Overlap and Installation

Anti-static PVC strip curtains are installed with a standard overlap (typically 50-100mm between adjacent strips) on a hanging rail or bracket system mounted above the doorway. The overlap ensures a continuous barrier while still allowing easy pass-through for personnel, hand carts, and forklifts.

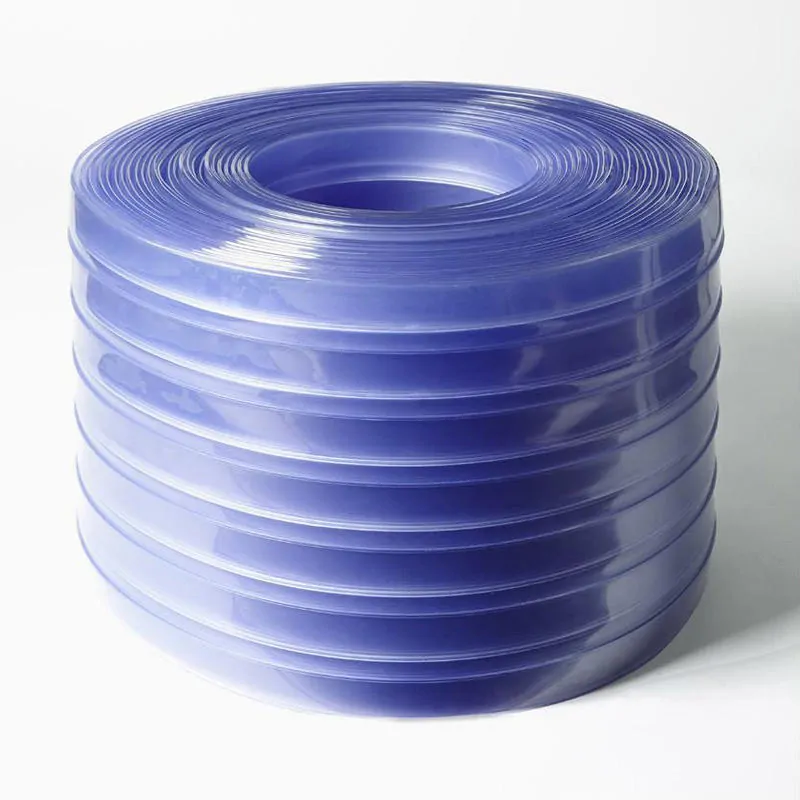

We supply the PVC strip material in rolls. Hanging rails, brackets, and mounting hardware are available separately or as a complete curtain kit. For help choosing the right strip width, thickness, and overlap for your doorway size, contact our team.

How Anti-Static PVC Differs from Standard PVC Strip Curtains

This is the most important section for buyers evaluating whether they actually need anti-static strips, or whether standard strips would be sufficient.

Material Formulation: Anti-static PVC contains a static-dissipative additive (typically a permanent anti-static agent, not a surface coating) blended into the PVC compound. This means the anti-static property is inherent to the material and is not removed by normal cleaning or everyday use - unlike surface-applied anti-static sprays, which tend to lose effectiveness over time.

Performance Over Time: Because the anti-static agent is embedded in the bulk material, anti-static PVC strip curtains are designed to provide long-term anti-static performance under normal use and cleaning conditions. There is no recoating or retreatment required under typical operating circumstances.

Barrier Performance is the Same: Anti-static strips provide the same temperature separation, dust barrier, noise reduction, and visual screening as standard PVC strips of the same dimensions. Switching from standard to anti-static does not reduce barrier performance.

Price Difference: Anti-static PVC strip curtains cost more per meter than standard PVC strips - typically 20-40% more depending on thickness and anti-static specification. The premium reflects the cost of the anti-static additive and the tighter quality control required to verify surface resistivity.

When Standard Is Fine: If your facility does not handle static-sensitive components, does not have ESD-protected areas, and does not require ESD compliance, standard PVC strip curtains are sufficient. For general warehouse, food processing, cold storage, and loading dock use, standard strips are the right choice. See our full PVC curtain strip range for standard options.

Packaging and Delivery

Why Choose ONE PLASTIC?

Anti-Static Specialist Supply: We produce anti-static PVC strip material with verified surface resistivity in the static-dissipative range (10^6 to 10^9 ohms). Routine batch testing is performed to confirm anti-static performance, and surface resistivity test reports are available on request.

Full PVC Strip Curtain Range: ONE PLASTIC manufactures both standard and anti-static PVC strip curtains, as well as other PVC sheet products. If you need a mix of standard and anti-static strips for different zones in your facility, we can supply both from a single factory.

Custom Sizes: We supply anti-static PVC strips in custom widths, thicknesses, and cut lengths to match your specific doorway dimensions and installation requirements.

ISO 9001 Certified: Our quality control process includes surface resistivity testing, thickness tolerance verification, and visual inspection on every batch.

Factory-Direct Pricing: As a PVC manufacturer with dedicated extrusion lines, we offer competitive pricing for both container-load orders and smaller quantities.

Frequently Asked Questions

How do I know if I need anti-static or standard PVC strip curtains?

If your facility handles electronics, semiconductors, circuit boards, or any static-sensitive components - or if you have designated ESD-protected areas (EPA) - you should use anti-static strip curtains at doorways entering those areas. If your facility is a warehouse, food plant, cold storage, or general manufacturing without ESD concerns, standard PVC strip curtains are sufficient.

Does the anti-static property wear off over time?

No. The anti-static agent in our PVC strip curtains is blended into the bulk material during manufacturing, not applied as a surface coating. This means the anti-static performance is designed to be long-lasting under normal use and cleaning conditions. Regular cleaning with mild detergent and water does not significantly affect the anti-static properties.

Can anti-static PVC strip curtains be used in cold storage?

Anti-static PVC strips can function in temperatures down to approximately -20 C. However, if your primary requirement is cold storage barrier performance (not ESD protection), standard PVC strip curtains designed specifically for cold/freezer use may be more cost-effective. Anti-static strips are optimized for ESD protection, not for extreme cold-chain applications.

What is the standard overlap for strip curtain installation?

For pedestrian doorways, the standard overlap is approximately 50mm (about one-third of the strip width for 200mm strips). For forklift or cart traffic, wider strips (300-400mm) with 75-100mm overlap are typical. The overlap ensures a continuous barrier while allowing pass-through.

Can I get anti-static PVC strips in colors other than clear?

Yes. Clear is the standard because it provides visibility through the curtain. We can also supply tinted, translucent, or opaque colored anti-static strips on request. Colored strips are sometimes used for visual zoning - for example, a distinct color to mark the boundary of an ESD-protected area.

What is the minimum order quantity?

MOQ depends on the strip width, thickness, and any custom specifications. For standard anti-static strips in common sizes, MOQ is typically low. Contact us for a specific quote based on your requirements.

Get a Quote

Need anti-static PVC strip curtains for your ESD-sensitive facility?

• Specify Your Doorway - Tell us the doorway width, height, and traffic type (pedestrian, forklift, or both)

• Request Samples - We can send anti-static PVC strip samples for surface resistivity testing at your facility

• Get a Custom Quote - Let us know your strip width, thickness, length, and quantity
