PVC Strip Curtain Kit

Introduction

The PVC strip curtain kit is a complete mounting solution that includes all components required for installing flexible PVC strip curtains, commonly used in warehouses, cold storage facilities, factory workshops, logistics corridors, industrial doorways, and commercial areas. Unlike purchasing PVC curtain strips, rails, and mounting hardware separately, this PVC strip curtain kit includes PVC strips, mounting rails, clamping plates, and necessary installation components, thereby simplifying product selection and enhancing installation efficiency for buyers.

ONE PLASTIC provides customized PVC strip curtain kit solutions for global distributors, wholesalers, installers, and industrial buyers. We offer tailored PVC strip curtain systems configured according to doorway dimensions, operating environments, PVC strip specifications, and overlap ratios to meet the specific requirements of diverse industrial applications.

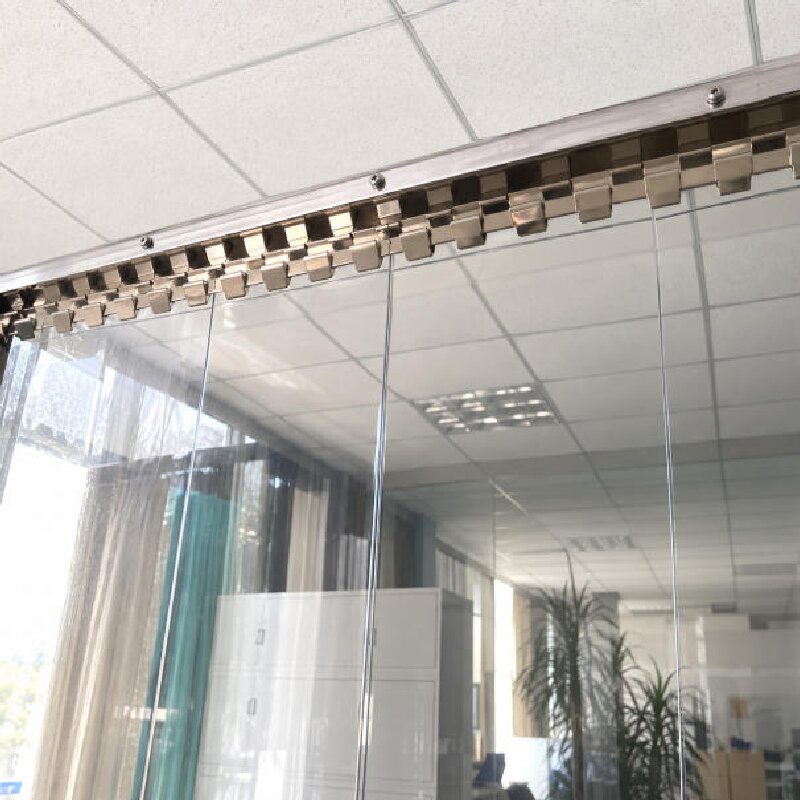

What components are included in a PVC strip curtain kit?

A complete PVC strip curtain kit typically consists of the following parts:

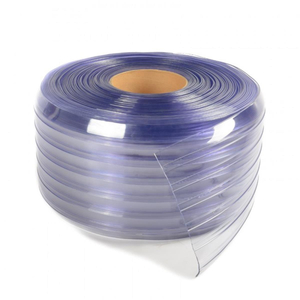

PVC Curtain Strips

The PVC curtain strips are the core component of the system, forming a flexible barrier. PVC strips with different widths, thicknesses, and performance grades can be selected according to application requirements.

Common specifications include 200 mm, 300 mm, and 400 mm wide PVC curtain strips.

Depending on the operating environment, various types are available, such as clear, ribbed, and low-temperature PVC strips.

Clear PVC strips maintain good visibility, facilitating the movement of personnel, vehicles, and equipment, while simultaneously minimizing air exchange, dust ingress, and temperature loss.

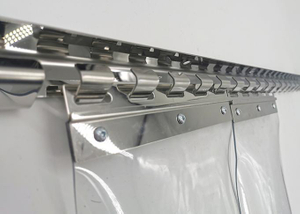

PVC Strip Curtain Rail

The PVC strip curtain rail is a top-mounted structure used to secure PVC curtain strips. Available materials include galvanized steel and stainless steel options such as 201 and 304 stainless steel grades.

Different materials are available to suit various needs, ranging from standard industrial environments to moisture-prone areas and applications requiring high corrosion resistance.

The rail length is selected according to the doorway width and can be customized to ensure proper strip spacing and secure installation.

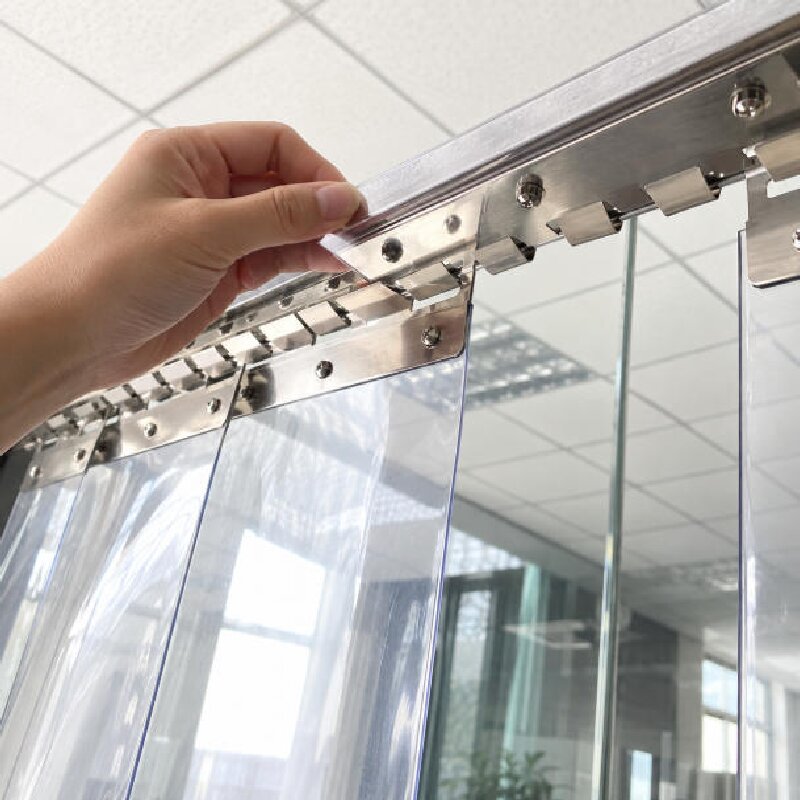

PVC Strip Curtain Clamping Plates

Clamping plates connect PVC curtain strips to the mounting rail and are a key component of PVC strip curtain kits.

Once secured by these plates, individual PVC strips can be removed and replaced independently without dismantling the entire curtain system.

This design is particularly suitable for high-traffic industrial areas, frequently used warehouse entrances, and production environments requiring regular maintenance.

How to Choose the Right PVC Strip Curtain Kit

When selecting a PVC strip curtain kit, several factors should be considered, including doorway dimensions, traffic frequency, temperature environment, and isolation requirements.

1. Selection based on doorway dimensions

First, determine the doorway width and height.

The doorway width determines the required length of the mounting rails and the number of PVC strips, while the doorway height determines the length of the PVC strips themselves.

Example:

Doorway dimensions:

Width: 2000 mm

Height: 2500 mm

The required number of strips and installation method can then be determined based on these factors.

2. Selecting PVC Strip Specifications Based on the Application Requirements

For low-temperature environments such as cold storage or freezer facilities, the appropriate grade of PVC strip curtains must be selected based on the actual operating temperature.

3. Selection based on overlap ratio

The overlap ratio between PVC strips affects isolation effectiveness, wind resistance, and ease of passage.

Common options:

25% overlap:

- Frequent pedestrian traffic

- Lower isolation requirements

50% overlap:

- Warehouses

- Factory entrances

- Cold storage areas

A 50% overlap provides a good balance between separation performance and ease of passage.

75% overlap:

- Applications requiring higher isolation performance

- Areas with higher wind pressure

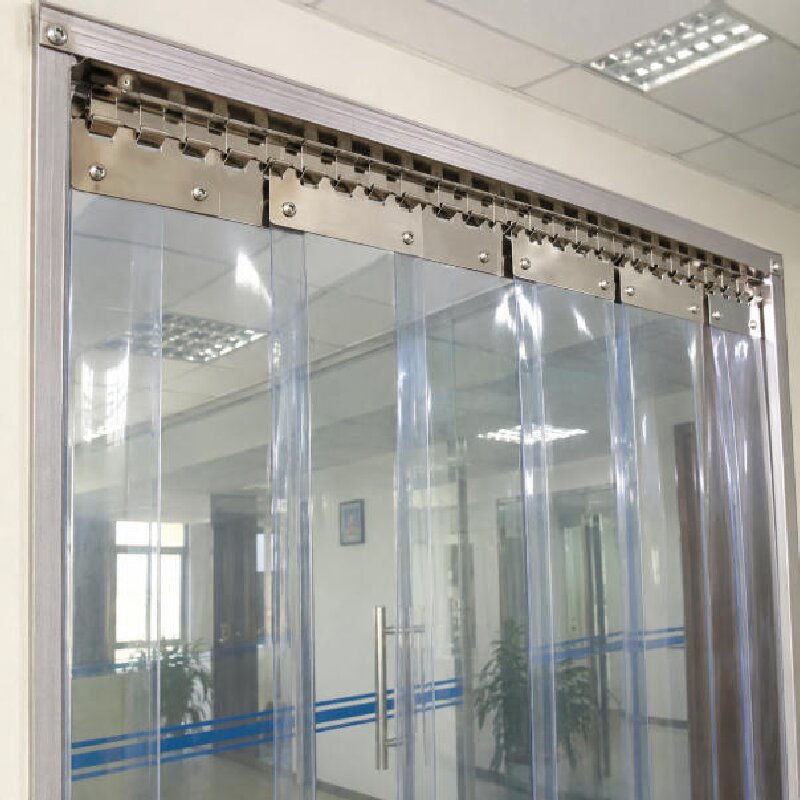

Complete PVC Strip Curtain Kit Configuration Example

Selecting a complete PVC strip curtain kit requires matching the PVC strips, mounting rail, clamping plates, and installation configuration with the actual doorway requirements.

The following example shows how a PVC strip curtain kit can be configured for a typical industrial doorway:

For this configuration, the PVC strips are arranged according to the doorway width and selected overlap ratio. A 50% overlap provides a balanced solution between environmental separation and convenient passage, making it suitable for warehouses, workshops, and general industrial doorways.

The required number of PVC strips depends on the strip width, overlap ratio, and actual installation method. The mounting rail length is selected according to the doorway width, while the PVC strip length is determined by the doorway height.

For customized projects, customers can provide the following information:

- Doorway width and height

- Operating environment

- Required temperature range

- PVC strip width and thickness

- Preferred overlap ratio

- Installation requirements

- Order quantity

Based on these details, ONE PLASTIC can recommend a suitable complete PVC strip curtain kit configuration, including PVC strips, mounting rails, clamping plates, and related accessories.

Applications

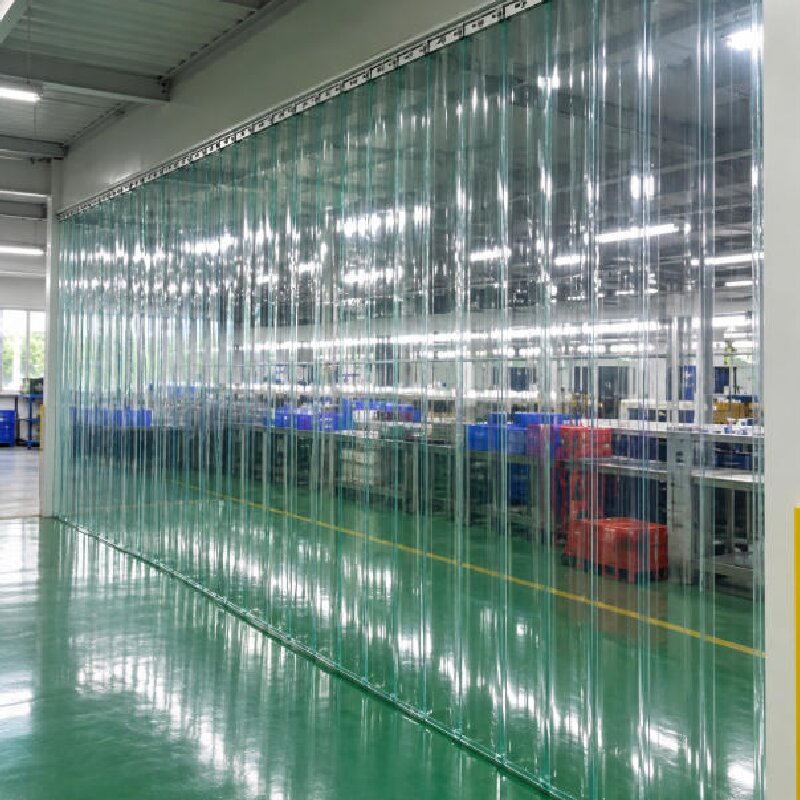

Warehouse and Industrial Doorways

Industrial PVC strip curtain kits are widely used for warehouse entrances and industrial doorways. They minimize air exchange and dust infiltration while allowing easy passage for personnel, carts, and equipment.

Cold Storage and Freezer Areas

In refrigerated and frozen environments, PVC curtain systems help reduce the loss of cold air and improve zone isolation.

For low-temperature environments, PVC strip curtains rated for the specific temperature range between -40 ℃ and 50 ℃ should be selected.

Factory Workshops

PVC strip door kits serve as flexible partitions between production areas, helping to delineate workspaces while maintaining access for personnel and equipment.

Logistics Loading and Unloading Areas

In loading and unloading zones, PVC strip curtains mitigate the impact of external environmental conditions while accommodating the demands of frequent logistics traffic.

Custom PVC Strip Curtain Kit Supply

ONE PLASTIC offers customized PVC strip curtain kits tailored to project requirements, including:

- Customization of PVC strip width and thickness

- Choice of clear or ribbed surface finishes

- Standard, low-temperature, or specialty PVC materials

- Customized mounting rail lengths

- Configuration of clamping plates and installation methods

- Customized packaging and labeling

Packaging

ONE PLASTIC supplies PVC strip curtain kits with export-ready packaging solutions suitable for distributors, installers, and industrial project buyers.

Packaging options include:

- PVC curtain strips packed in rolls, wrapped with PE film, and placed on export pallets.

- Mounting rails and clamping plates packed separately in cartons or protective packaging, then palletized for export.

- Customized labeling, packaging marks, and export cartons are available according to customer requirements.

FAQ

What is included in a PVC strip curtain kit?

A complete kit usually includes PVC strips, mounting rails, clamping plates, and related installation components. The configuration can be customized according to doorway size, application environment, and installation requirements.

How do I choose the correct PVC strip curtain kit size?

Selection depends on doorway width, height, strip size, overlap ratio, traffic level, and operating environment.

Can PVC strip curtain kits be customized?

Yes. We can customize strip sizes, rail lengths, overlap configurations, and packaging according to project requirements.

What is the MOQ for PVC strip curtain kits?

MOQ depends on the PVC strip specifications, kit configuration, customization requirements, and order quantity. ONE PLASTIC supports both trial orders and bulk supply for distributors, installers, and industrial buyers.

Can I buy replacement PVC strips separately?

For existing PVC strip curtain systems, individual components such as PVC strips, mounting rails, and clamping plates can be supplied separately for replacement and maintenance.

Do you supply PVC strip curtain kits in bulk?

ONE PLASTIC offers not only PVC curtain strips, mounting rails, and installation hardware but also supplies complete PVC strip curtain kits in bulk.

For distributors, wholesalers, and industrial project buyers, purchasing complete kits minimizes compatibility issues between components and enhances installation efficiency.

Why Choose ONE PLASTIC?

ONE PLASTIC specializes in PVC strip curtain systems, supplying PVC strips, mounting rails, clamping plates, and complete PVC strip curtain kits for industrial applications.

With flexible production capabilities, factory-direct supply, customized PVC strip curtain solutions, and expertise in export packaging, we meet the long-term procurement needs of distributors, installers, and industrial project clients.

Whether for standard PVC strip curtain kits or custom solutions designed for specific doorway dimensions, ONE PLASTIC provides complete PVC strip curtain solutions tailored to specific project requirements.
