PVC Strip Curtain Rail

A PVC strip curtain rail is an overhead mounting track designed to support PVC strip curtains. It is typically installed at the top of a doorway or on the door frame in facilities such as warehouses, cold storage units, factories, or industrial openings. In a hook-on mounting system, PVC strips are fitted with clamping plates at the top, allowing them to be hooked directly onto the rail to form a complete PVC strip curtain mounting system.

Compared with systems in which PVC strips are fixed directly to the door frame, a hook-on rail system allows individual strips to be easily removed, adjusted, or replaced. This makes it particularly suitable for industrial environments where regular cleaning, maintenance, or strip replacement is required.

Key Features

1. Hook-On Design

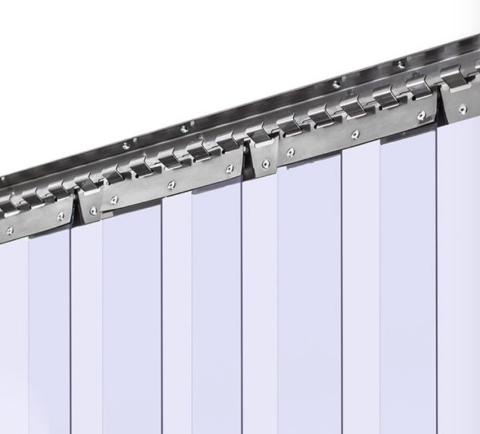

This rail features a hook-on structure. Once the PVC strips are fitted with compatible clamping plates, they can be hung directly onto the rail. Individual strips can then be removed without dismantling the entire curtain system, making routine cleaning, maintenance, and replacement easier.

2. Compatible with Different PVC Strip Widths

PVC strip curtain rails can be used with common PVC strip widths such as 100 mm, 200 mm, 300 mm, and 400 mm. When selecting a mounting system, the appropriate clamping plate size and installation configuration should be determined according to the PVC strip width, doorway dimensions, and required overlap.

3. Easy Installation and Replacement

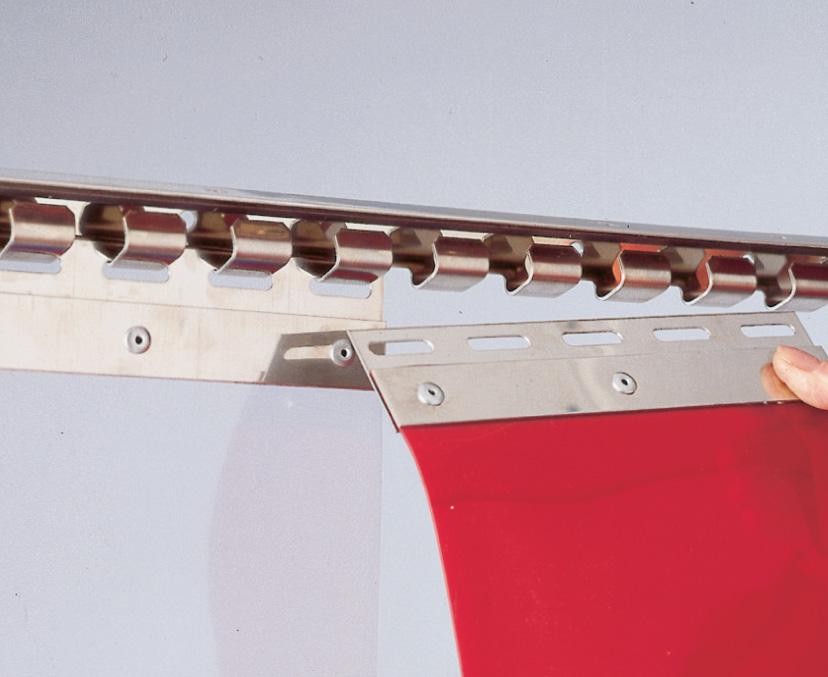

During installation, first secure the rail above the doorway. Next, attach the clamping plates to the top of each PVC strip, and then hook the assembled strips onto the rail one by one. This configuration is particularly suitable for projects requiring quick installation and convenient individual strip replacement.

4. Standard and Heavy-Duty Options

Depending on the operating environment, you can choose between a standard hook-on rail and a heavy-duty hook-on rail. The standard version is suitable for pedestrian traffic and general industrial doorways, whereas the heavy-duty rail is recommended for applications where the curtain strips are frequently exposed to impact from forklifts, pallet trucks, or other vehicles.

PVC Strip Curtain Rail Specifications

Applications

PVC strip curtain rails are widely used in warehouses, cold rooms, freezers, factories, workshops, loading docks, and industrial doorways. In these environments, PVC strip curtains serve as flexible barriers for the passage of personnel, carts, and certain types of equipment, while the rails provide a stable, easily maintainable overhead mounting structure.

For cold rooms, freezers, and other temperature-controlled areas, the appropriate PVC strip grade should be selected according to the actual operating temperature. The rail itself should not be used as the sole basis for determining low-temperature suitability.

How Does the PVC Strip Curtain Rail System Work?

A complete hook-on PVC strip curtain system generally consists of the following components:

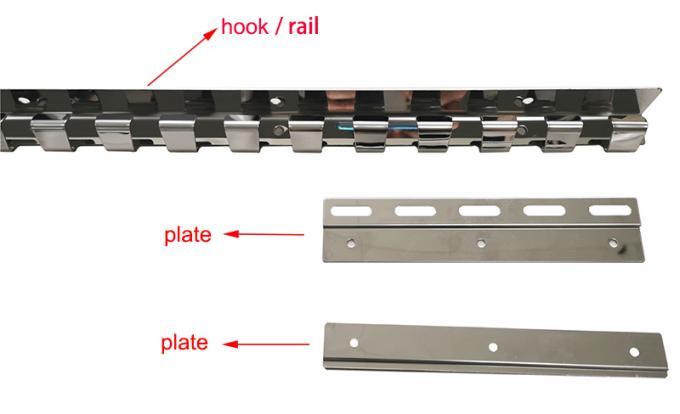

Door Frame / Wall →PVC strip curtain rail → Clamping plate → PVC strip

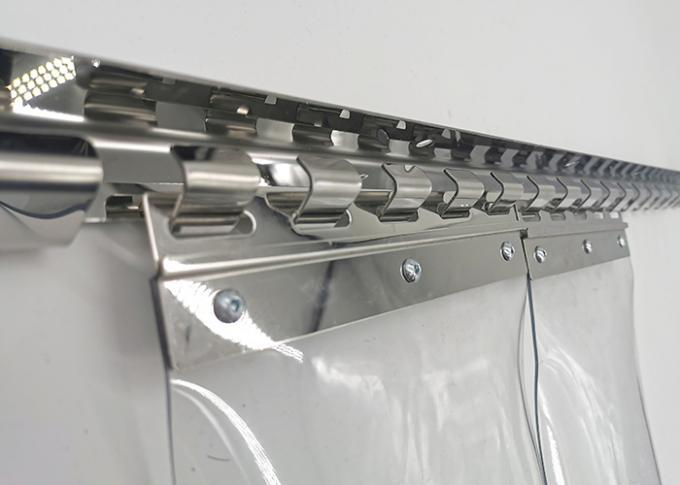

The rail is mounted at the top of the doorway, while the clamping plate secures the top of the PVC strip. Once the strip is attached to the plate, the assembly is hooked onto the rail. Different PVC strip widths typically require corresponding clamping plate sizes.

Why Choose Our PVC Strip Curtain Rail?

As a PVC strip curtain manufacturer and system supplier, we provide mounting rails, clamping plates, flexible PVC strips, and related installation accessories for complete curtain systems.

For wholesalers, curtain fabricators, industrial project buyers, and overseas distributors, specifications and mounting configurations can be customized according to doorway dimensions, PVC strip sizes, installation requirements, and order quantities. OEM, bulk purchasing, and long-term supply arrangements are available.

PVC Strip Curtain Rail Compatibility

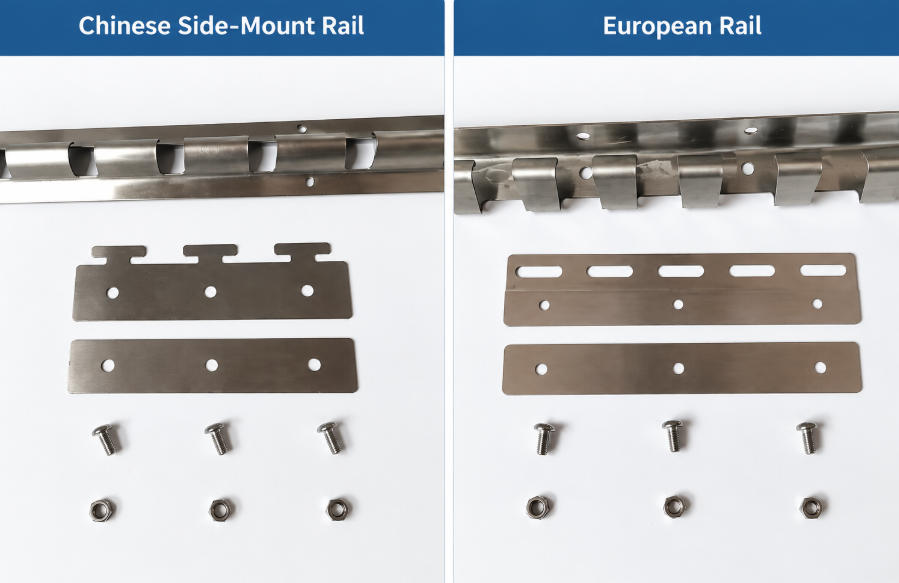

PVC strip curtain rails and clamping plates are not necessarily interchangeable between different mounting systems. Before ordering replacement rails, confirm the rail profile, dimensions, mounting hole spacing, clamping plate size, and PVC strip specifications.

For replacement projects, customers can send photos and measurements of the existing rail and clamping plates so that compatibility can be checked before bulk ordering.

FAQ

Can the PVC strips be replaced individually?
Yes. One of the advantages of the hook-on mounting system is that the PVC strips can be individually removed and replaced.

Can you supply PVC strip curtain rails in bulk?
Yes. We provide bulk supply for distributors, wholesalers, curtain fabricators, and industrial project buyers. Custom specifications and packaging can also be discussed according to order requirements.

MOQ & Get a Quote

PVC strip curtain rails are normally supplied together with PVC strip curtain orders. For separate rail purchases, the MOQ is negotiable.

To receive a quote, please provide the doorway width and height, PVC strip width and thickness, required overlap, preferred rail material, order quantity, and application. If the required rail length or mounting configuration is not yet confirmed, our team can recommend a suitable solution based on your doorway dimensions.

Get a Quote

Example Configuration

One configuration we supply to distributor customers, per 1050 mm section:

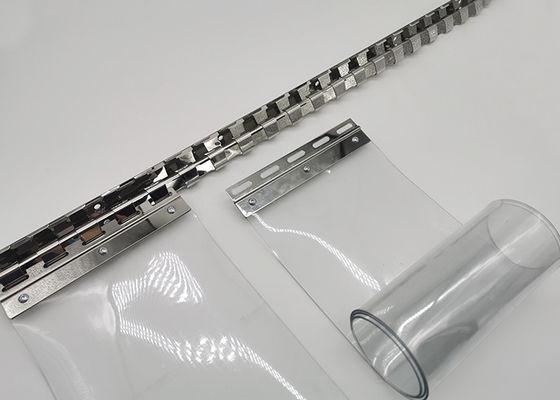

- 1 × hook-on rail, stainless steel 201

- 7 pairs of clips

- 21 sets of screws and nuts (3 per clip pair)

- 14 mounting screws

Clip count, pitch, material grade and section length are all adjusted to your strip width, overlap and door traffic. Tell us the opening size and strip specification and we will quote the matching set.
