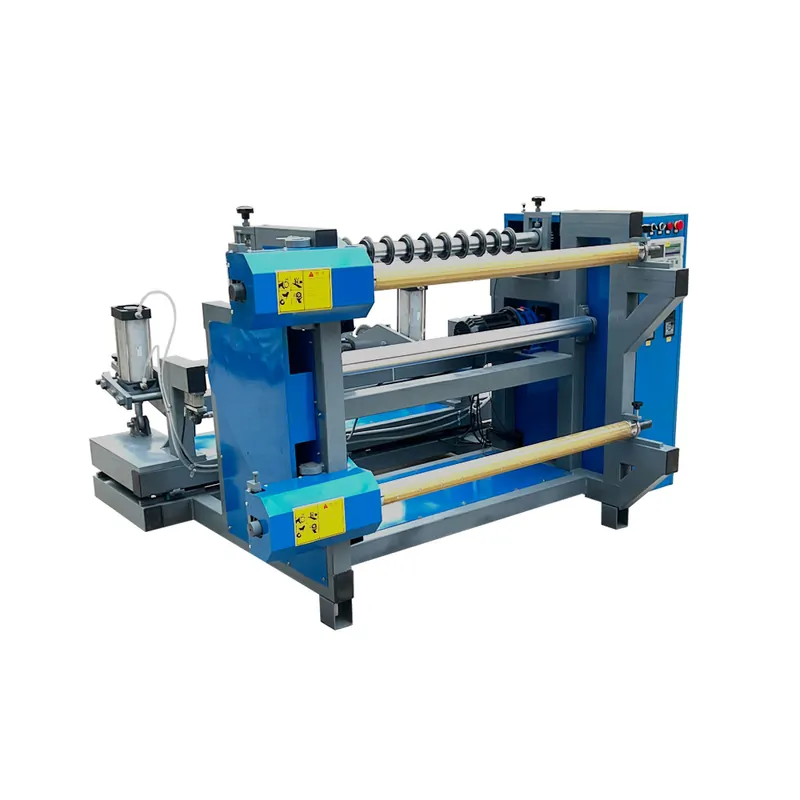

Automatic PVC film cutting machine
ONE PLASTIC
RY-810
Metal
Wooden box
3200 mm x 1700 mm x 1500 mm
| Operating Speed: | |
|---|---|
| Voltage: | |
| Automatic PVC film cutting machine | |
| Maximum Diameter of Raw Material Unwinding | 600mm |
| Maximum Diameter of Raw Material Winding | 420mm |
| Maximum With of Cutting Roll Material | 1100mm |
| Winding Tile Inflatable Shaft | 1100mm |
| Injection Cylinder Diameter | 130mm |
| Machine Weight | 1300KG |
| Correction Precision | +/- 0.5mm |
| Cutting Precision | +/- 0.5mm |
| Operating Speed | 10-150 m/min |
| Voltage | 380V/50HZ |
| Power Consumption | 8.5 KW |
| Control System | PLC touch screen control for precise and easy operation |
| Material Compatibility | Suitable for PVC film, PET film, BOPP, and other plastic films |
| Blade Type | Circular blade with adjustable slitting positions |
| Tension Control | Automatic tension control for both unwinding and winding to ensure consistent material handling |
| Safety Features | Emergency stop button, safety guards, and overload protection |
| Cooling System | Air-cooled system to maintain optimal machine temperature during operation |
| Noise Level | ≤75dB |
Automatic PVC cutting machine has a simple and practical operation interface. You only need to set up and wait for the machine to cut the PVC film and get small rolls of PVC film.
Automatic PVC film cutting machine has a very high production efficiency, and can steadily process 150M of PVC roll per minute, which makes it very efficient in this part of the work.
Automatic PVC film cutting machine has a very high mechanical precision, both cutting and correction have reached +/- 0.5mm, which makes the width of the PVC film produced by it basically consistent, not only making the product beautiful, but also reducing material waste.
Automatic PVC film cutting machine can not only be used to cut PVC rolls for artificial Christmas trees, but also for packaging, labeling, or PVC rolls required for industrial applications.
Automatic PVC film cutting machine is stable. This stability is not only reflected in the stability of the machine efficiency, but also in the machine itself. By using high-quality materials and components, we ensure long-lasting performance and low maintenance requirements.
Material Loading: The raw material roll is loaded onto the unwinding shaft.
Slitting Setup: The slitting positions are adjusted according to the required width.
Operation Start: The machine starts slitting and cutting the material at the set speed.
Winding: The cut materials are wound onto the inflatable shaft.
Quality Check: Each batch is inspected for precision and quality before packaging.
Packaging Industry: Slitting and cutting PVC films for packaging materials.
Label Production: Creating precise cuts for label materials.
Industrial Applications: Cutting various plastic films for industrial uses.
Automotive Industry: Preparing films for automotive components.
Consumer Goods: Producing films for household and consumer products.
Greetings from One Plastic, we are the leading manufacturer of artificial Christmas tree making machines in China, dedicated to providing customers with a variety of customized services. We also provide two types of Christmas tree making machines: PVC artificial Christmas tree and PE artificial Christmas tree. If you have any special needs for the machine, you can also contact us, we will solve the problem for you within our capabilities.
We have been committed to the wholesale of artificial Christmas tree making equipment, and have reduced the price of artificial Christmas tree making machines through factory direct sales. By using advanced machines and technologies, as well as strict audit processes, our product quality has always been maintained at a high level, which we are proud of. As a trustworthy manufacturer, we are happy to solve various problems for our customers. If you want to consult about production solutions, we also have a professional team to answer your questions. Choose One Plastic, we will provide personalized services according to your needs and bring practical solutions to your problems.
