Product Overview
Industrial Air-Cooled Chiller for Production Cooling
This industrial air-cooled chiller uses ambient air as the condensing medium to remove heat from circulating water or process fluid. The page now presents the key specification range, operating principle, structure, packing method and supplier background in a clearer procurement sequence.
Quick Specification Snapshot
Model
Industrial Air-Cooled Chiller
Largest Listed Size
242*95*196 cm
Product Parameters
The following tables list the available horsepower models and the matching cooling, refrigerant, compressor, blower, evaporator, pump and machine-dimension data currently shown for this product.
Cooling Capacity, Refrigerant, Compressor and Blower
| Item | Voltage | Cooling Capacity | Refrigerant | Compressor | Blower |
| Name |
| Kcal/H | KW | Name | Control Method | Type | Power(KW) | Air Volume | Power(KW) | Heat Dissipation Temperature |
| 1HP | 220V/50HZ | 2500 | 2.8 | R22 | Capillary | Vortex | 0.75 | 1250 | 0.15 | ≤35°C |
| 2HP | 5000 | 5.6 | 1.5 | 2350 | 0.15 |
| 3HP | 380V/50HZ | 7500 | 8.4 | 2.25 | 3216 | 0.16*2 |
| 5HP | 12500 | 14 | 3.75 | 6570 | 0.18*2 |
| 6HP | 15000 | 16.8 | 4.5 | 6570 | 0.18*2 |
| 8HP | 20000 | 22.4 | 6 | 9800 | 0.25*2 |
| 10HP | 25000 | 28 | 7.5 | 9800 | 0.25*2 |
| 15HP | 37500 | 42 | 11.25 | 17000 | 0.6*2 |
| 20HP | 50000 | 56 | Expansion valve | 15 | 26640 | 0.63*3 |
| 25HP | 62500 | 70 | 18.75 | 34000 | 0.63*2 |

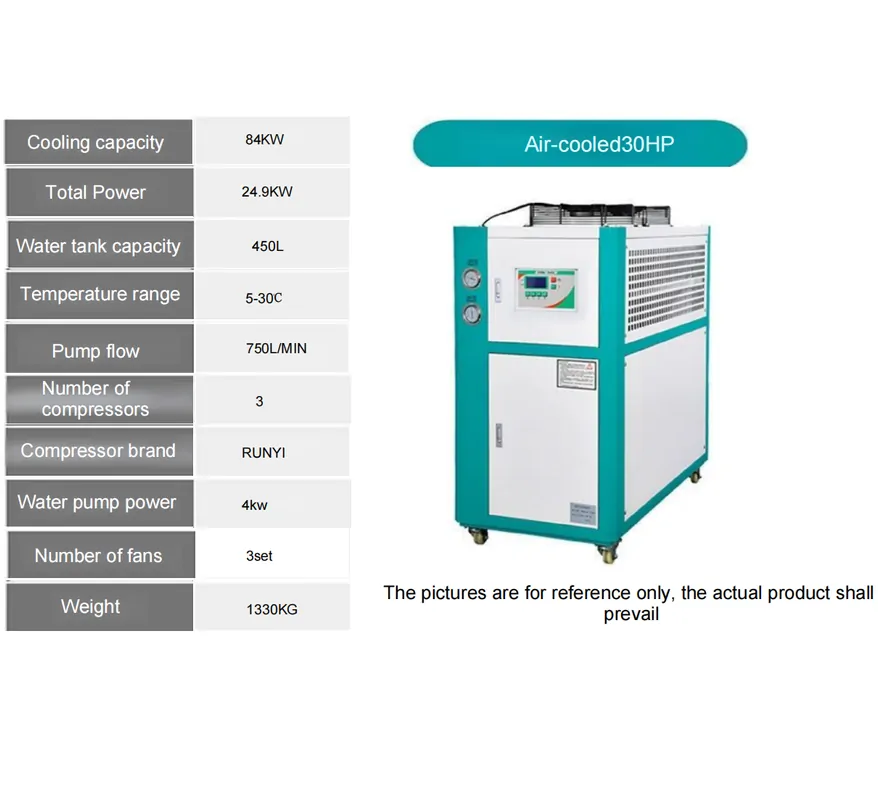

| 30HP | 75000 | 84 | 22.5 | 51000 | 0.68*3 |
Evaporator, Water Pump and Machine Dimensions
| Item | Evaporator | Water Pump | Machine Description |
| Name | Water tank capacityWater tank capacity(L) | Pipe diameter | Water flow | Power(KW) | Lift(M) | Weight(KG) | Size(CM) | Fans(MM) |
| 1HP | 40 | 6 | 40(L/min) | 0.37 | 18 | 60 | 85*52*80 | 350*1 |
| 2HP | 40 | 6 | 40(L/min) |
|
| 102 | 85*52*80 |
|
| 3HP | 60 | 25 | 100(L/min) |
|
| 160 | 105*57*119 | 350*2 |
| 5HP | 70 | 25 | 100(L/min) |
|
| 190 | 130*65*130 | 400*2 |
| 6HP | 70 | 25 | 120(L/min) |
|
| 190 | 130*65*130 |
|
| 8HP | 140 | 40 | 200(L/min) | 1.1 | 20 | 380 | 150*75*149 | 450*2 |
| 10HP | 140 | 50 | 200(L/min) | 1.5 |
| 380 | 150*75*149 |
|
| 15HP | 210 | 50 | 220(L/min) |
|
| 680 | 175*86*161 | 550*2 |
| 20HP | 310 | 65 | 30(T/h) | 2.2 | 22 | 830 | 187*110*179 | 500*4 |
| 25HP | 310 | 65 | 30(T/h) |
|
| 1200 | 187*110*179 | 630*3 |
| 30HP | 450 | 80 | 54(T/h) | 4 | 20 | 1330 | 242*95*196 | 550*3 |
Working Principle
The air-cooled chiller works through heat transfer. A cooling liquid, such as water, passes through the evaporator and absorbs heat from the cooling target. The compressor then compresses the refrigerant gas, sends it through the condenser, and releases the heat to the surrounding air. The refrigerant returns to liquid form and cycles back to the evaporator.
Cooling Process and Internal Structure
Packing and Shipping
Packing
Customized packing is available, including logo or brand labels when required.
Export packaging is used to protect the machine during international transportation.
Shipping
For large quantity orders, ONE PLASTIC works with international shipping companies.
Samples and small orders can be shipped by TNT, FedEx, UPS, DHL and other express services.
About ONE PLASTIC
ONE PLASTIC supplies artificial Christmas tree making machines and related production equipment, with support for customized machine requirements when the project scope allows.
For buyers comparing cooling capacity, machine size, packing method or production-line fit, the ONE PLASTIC team can review the required configuration and provide a practical quotation plan.
