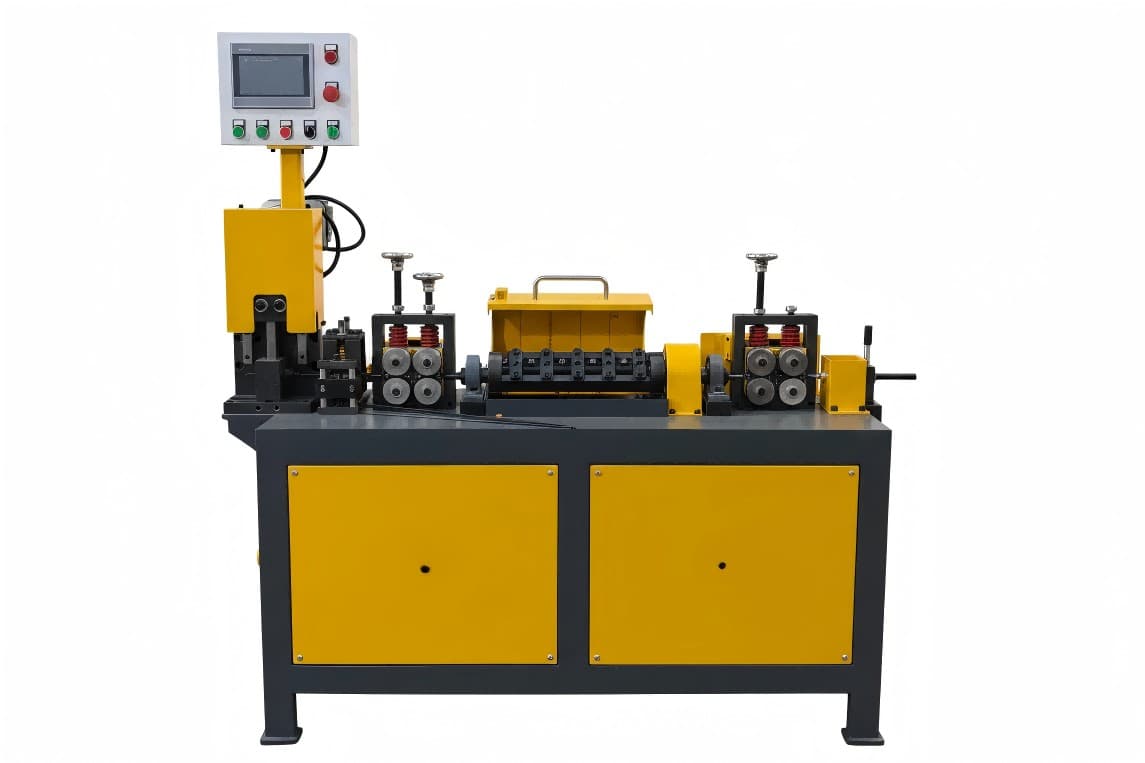

Wire Straightening And Cutting Machine 2-6 mm

This wire cutting machine is available in three different models, each designed to process a specific iron wire diameter range:1-4mm/2-6mm/4-8mm.All models are equipped with dual servo motors and fully controlled by a PLC system, ensuring stable performance and accurate wire length adjustment. You can easily set the cutting length through the control panel to match your production requirements.

Model:
Wire Straightening And Cutting Machine
Brand:
ONE PLASTIC
Code:
RY-812
Material:
Metal
package:
Wooden box
Size:
1300*400*800mm

Total Power:	380V
Power:	1.5KW
Availability:



Inquire

Product Description

The wire cutting machine serves as an auxiliary machine in the entire artificial Christmas tree production process, providing the wire needed for binding the branches and further improving your artificial Christmas tree production system.

Application Of Wire Straightening And Cutting Machine

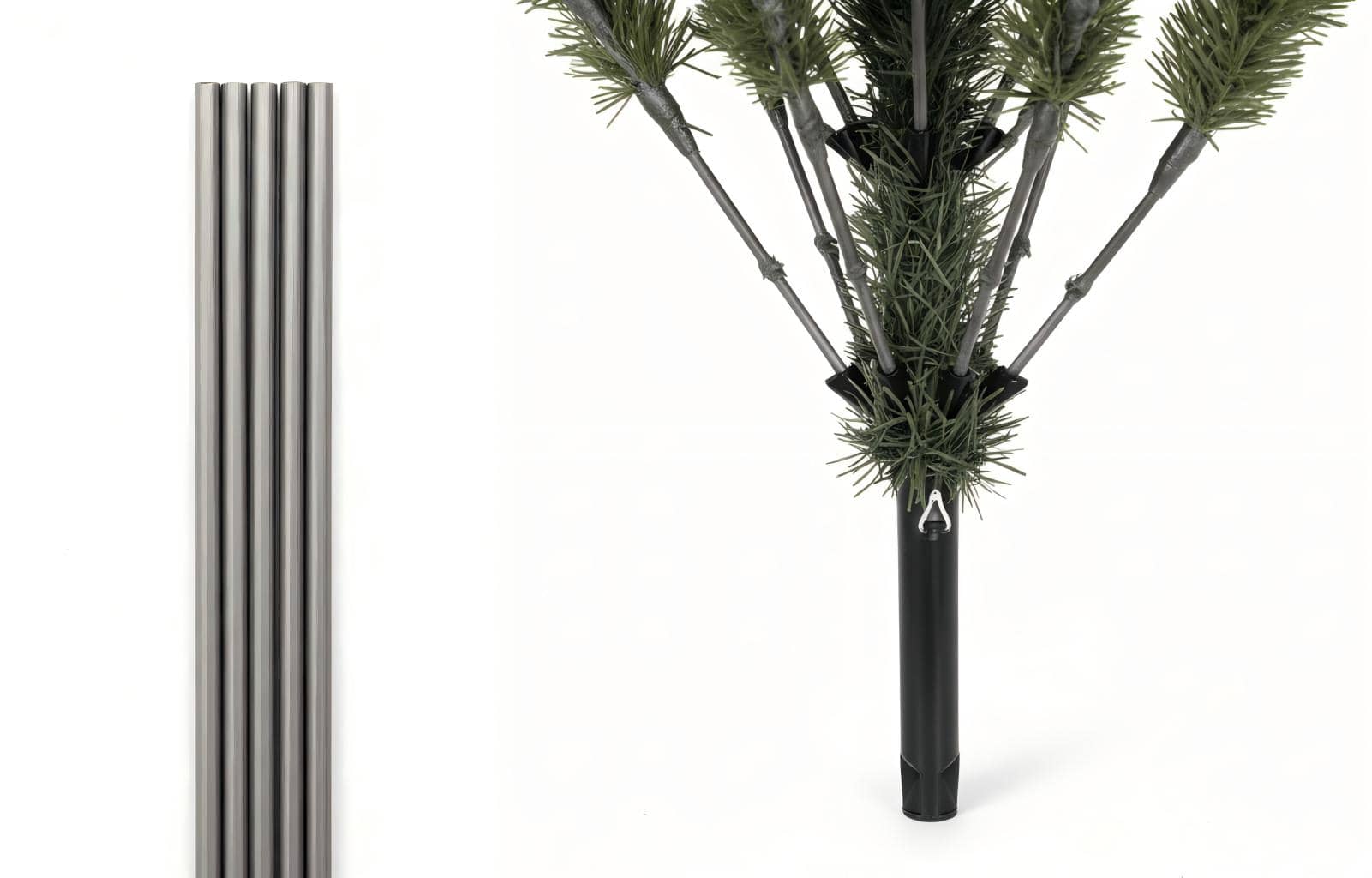

铁丝调直机1-4mm (2)

In this artificial Christmas tree, excluding the central trunk and the base, all the PVC/PE leaves are tied to wire branches. If hinge connectors are used, two different diameters of wire are needed for tying the smaller and larger branches, which are then secured to the central trunk using hinge connectors and rivets. If a direct binding method is used, the same amount of wire is used, and the larger branches are ultimately tied to the central trunk with PP wire.

The role of the wire cutting machine is to complete the entire artificial Christmas tree production system. This machine is not essential in the overall production process; it is only necessary if long-term purchases of finished wire are acceptable.

Wire Straightening And Cutting Machine Parameter

Machine Component Model:

Item	Model	Power	Quantity	Voltage	Remark
Programmable Controller	XD3-24T-E		1
Drive	ASD620B120A00A		1	220V	Wire Conveying
Servo Motor	130ST-M10025A-N	2KW	1	220V	Wire Conveying
Drive	ASD620B120A00A		1	220V	Wire Cutting
Servo Motor	e130ST-M10025A-N	1KW	1	220v	Wire Cutting
Touch Screen	TG765-UT		1
Servo Cable	ASD600EPW0030/ASD600EEN0030		1
Straightening Shaft Motor	AT500-T3-4R0G/5R5PB	3KW	1
485 Communication Card	485		1
External Encoder	S380G1-5000BM		1
Braking Resistor	500W100R		1
Production Efficiency	Approximately 1.0-3.0mm wire diameter, 35-45m/min

Comparison Of Multiple Models：

Model	1~4mm (Dual servo)	2~6mm (Dual servo)	4~8mm (Dual servo)
Electrical	Three phase four wire+220v	Three phase four wire+220v	Three phase four wire+220v
Straightening	6 Group	6 Group	6 Group
Wire feeding wheel group	4 Group	4 Group	4 Group
Material of wire feeding wheel group	40# Chromium	40# Chromium	40# Chromium
Servo motor power	Cutting blade 1.0kW, wire feeding 2.6kW	Cutting blade 1.5kW, wire feeding 2.6kW	Cutting blade 2.6kW, wire feeding 2.6kW
Wire Range	1–4mm iron wire and stainless steel below 4mm	2–6mm iron wire and stainless steel below 4mm	4–8mm iron wire and stainless steel below 6mm
Appearance dimensions	13505501400mm	13505501400mm	13505501400mm
Perimeter of wire delivery	Unrestricted	Unrestricted	Unrestricted
Storing data	99999 Group	99999 Group	99999 Group
Wire delivery speed	50m/min	50m/min	50m/min
Wire delivery accuracy	±0.3mm	±0.3mm	±0.3mm
Control system	Straightening machine control system	Straightening machine control system	Straightening machine control system
Control panel	Button	Button	Button

Advantages Of Wire Straightening And Cutting Machine

effective

High Efficiency

This wire cutting machine has a very high production efficiency, capable of processing corresponding wires at a high speed, outputting a cut wire section in an average of about 2 seconds.

money

Servo Motor Energy Saving

This machine is designed with dual servo motors, which can save a significant amount of electricity under normal use. If you live in an area with high electricity costs, this machine will be user-friendly.

area

Small Footprint

The wire cutting machine has a compact overall structure, occupying only a small amount of space in the factory. Its dimensions of 1.3*0.4M allow you to place it anywhere.

Packaging And Shipping

package01

For packaging, we typically use wooden crates to seal the machines. Inside the crate, wooden strips are attached to the bottom to secure the machine and prevent it from shifting or tilting. The machine itself is further covered with plastic film for protection in case of accidents, and the material rack is placed next to the machine. This is our usual packaging and sealing method. If you have any additional requirements, please contact us.

Regarding shipping, we will submit the order to the factory after order confirmation. The machine will generally be completed within about two weeks. The completion time depends on the recent order volume; it usually takes longer during peak season. After production, the machine will be sealed and shipped to the designated port. If you have a local agent, you can also have them handle the shipping.

FAQ

What is the function of the wire cutting machine?

The wire cutting machine is mainly used for cutting wire. This machine can process 35-45 meters of wire per minute.

What are the different models of wire cutting machines?

There are three models of wire cutting machines: 1-4mm, 2-6mm, and 4-8mm. All models are equipped with dual servo motors and are fully controlled by a PLC system.

How does this machine work?

The wire cutting machine is controlled by a PLC system, making it fully automated, and has a control panel. Workers are responsible for feeding and collecting the wire, placing it on the feeding rack and collecting the cut wire.

What role does this machine play in the production of artificial Christmas trees?

The wire produced by the wire cutting machine is used for binding the branches in the production of artificial Christmas trees. Binding the branches of artificial Christmas trees requires two different diameters and two types of wire; this machine plays a crucial role in completing the production system.
