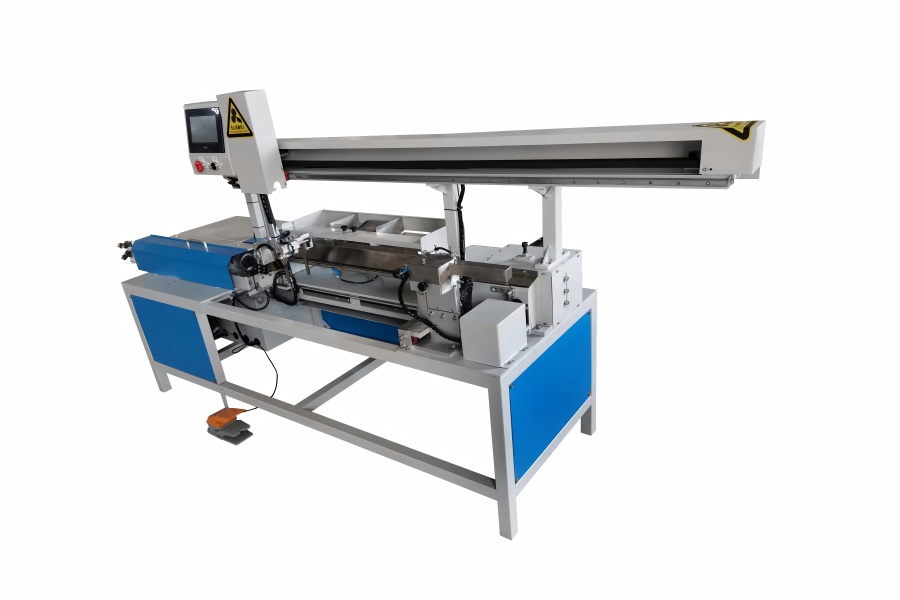

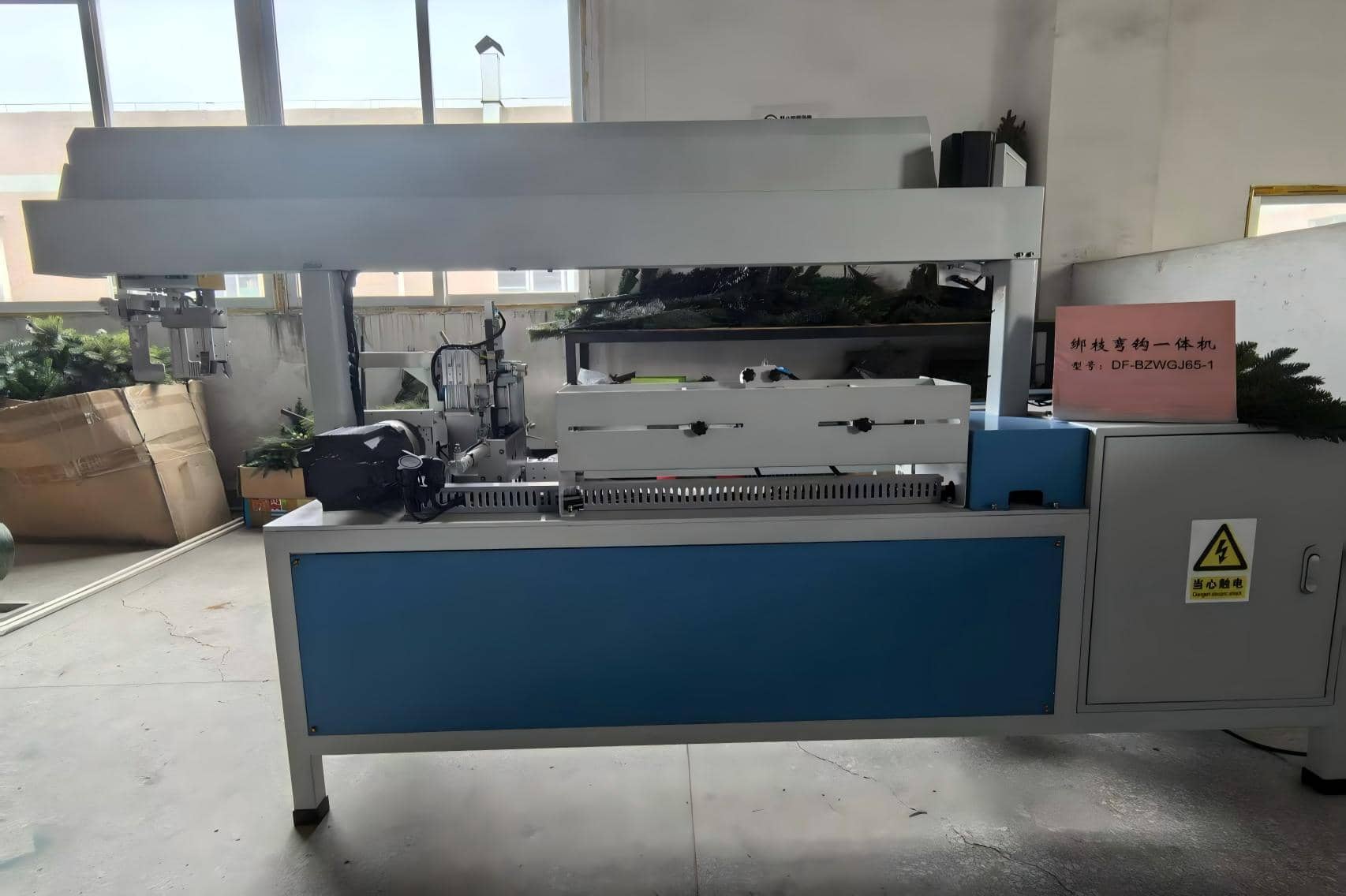

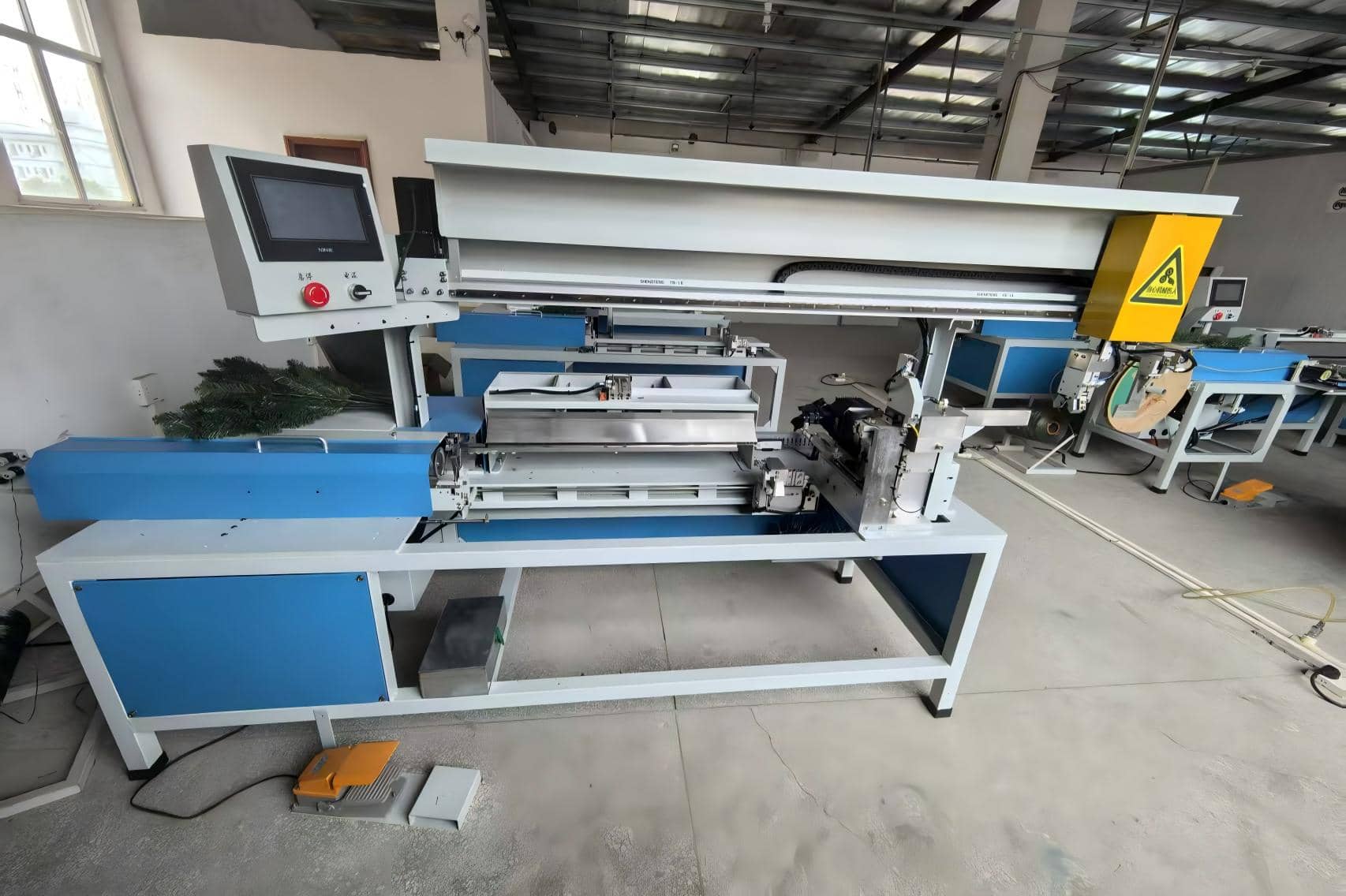

Hook-Forming And Branch-Binding In-One Machine

The "hook forming and branch binding in one machine" is a type of artificial Christmas tree tying machinery. This machine inherits the general functions of a tying machine while also being able to bend the ends of the tying wire. This combination of functions makes the production of artificial Christmas trees more integrated.

Model:
Branch Binding Machine
Brand:
ONE PLASTIC
Code:
RY-302

Overall Dimensions:	26607001240 mm
Package Size:	24807201100 mm
Availability:



Inquire

Product Description

The hook forming and branch binding in one machine can bend the ends of the binding wire, and the degree of bending can be adjusted via the control panel. The significance of combining the bending of the binding wire ends with the binding of Christmas tree branches is that it eliminates the separate wire bending step, saving manpower and resources.

Parameter Of Hook Forming And Branch Binding In One Machine

Device Name	Hook-forming And Branch-binding In-one Machine
Overall Dimension	2660mm700mm1240mmm
Package Size	2480mm720mm1100mm
Rated Voltage	220V
Rated Power	3400W
Applicable Wire	2-6mm Straight Wire
Product Suitable For	Christmas tree branch binding, label-sleeving and hook-forming production.The iron wire is 100-650mm long and 2-6 mm in diameter in 1-20 segments with 1 to 8pine leaves in each.
Designed Speed	20000-40000Leaves/Day
Number Of Binding Segments	Segment 1-20
Thread Finish	Ultrasonic Wave
Automatic wire sorting, diameter 2-6 mm.
Automatic segmental binding,segment 1-20.
Automatic end-knotting, no smoke,no smell, no heating.
Automatic online hook-bending,7 shape/9 shape.
Automatic on-line layer label sleeving.
Computer intelligent control, accurate, energy saving.
Touch the screen for man-machine dialogue in Chinese, set parameters and monitor the equipment running status.
One key start and stop, automatic fault detection, automatic alarm and stop.

Application Of Hook Forming And Branch Binding In One Machine

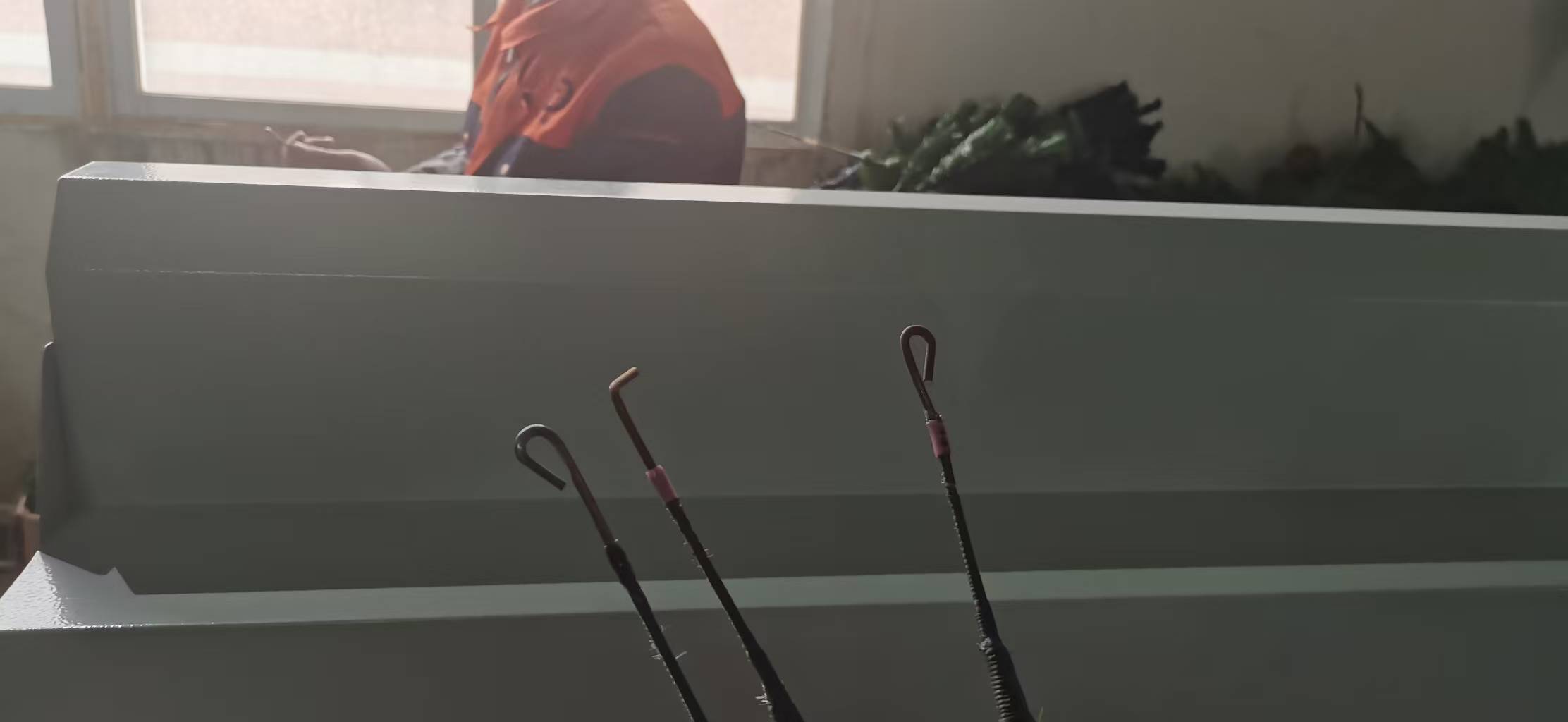

branch binding and hook bending machine

The hook forming and branch binding in one machine primarily serves artificial Christmas trees using hinge connectors. It reduces separate operational processes by integrating branch binding and wire bending into a single process. Because the wire bending is automated, it saves manpower and resources. Furthermore, the required degree of wire bending varies depending on the individual user, and this can be adjusted via the control panel.

Packaging And Shipping

package01

Packaging

Generally, we use wooden crates to pack the machines. We place pallets at the bottom of the crates for easy transport, and reinforce the bottom inside the crates with wooden boards to secure the machine. We also include some easily damaged parts inside the crates to ensure long-term machine use.Of course, if you have special packaging requirements, we can also customize packaging for you.

Shipping

The machine supports both air and rail transport; you can choose the delivery method that best suits your needs. We will notify the factory to begin production upon order confirmation. After completion, the machine will be tested, and once confirmed to be working correctly, it will be packed and delivered to the designated location. If you have a local agent in your area, we can also deliver the machine to them, who will handle the remaining shipping procedures.

FAQ

What is a hook-forming and branch-binding in-one machine?

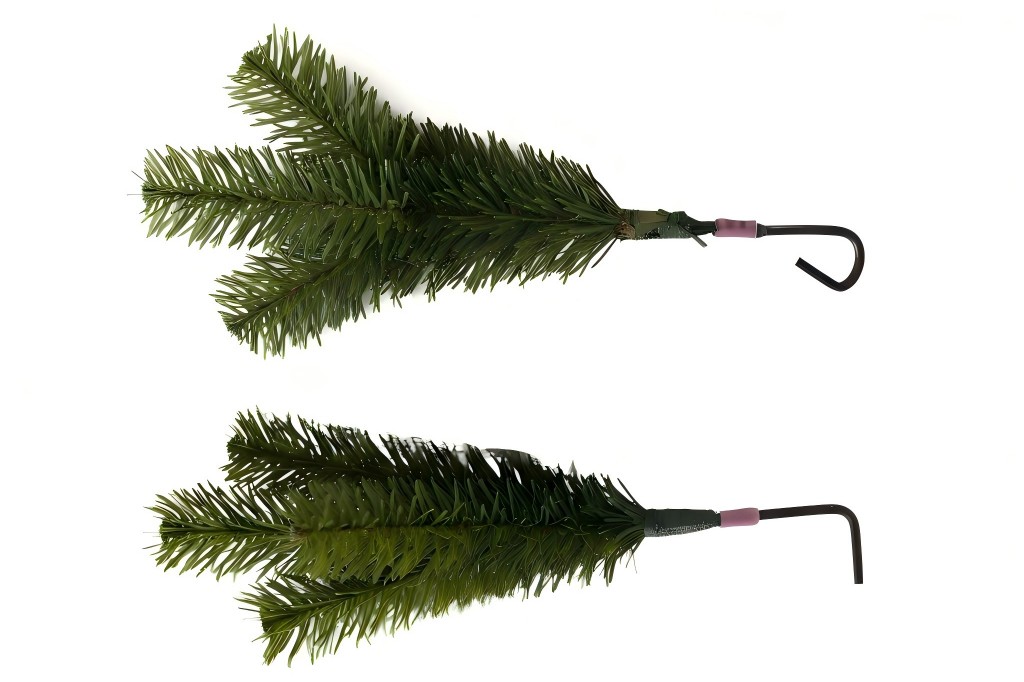

This machine is a specialized artificial Christmas tree production machine that integrates branch binding and wire end hook forming into one process. It binds Christmas tree branches and automatically bends the wire ends into hooks, eliminating the need for a separate wire-bending step.

What types of artificial Christmas trees is this machine suitable for?

This machine is mainly designed for artificial Christmas trees using hinge or hook connectors, including both PVC and PE Christmas tree branches that require wire binding and hook forming.

What wire specifications can the machine handle?

The machine supports straight iron wire with a diameter of 2–6 mm and wire lengths ranging from 100 mm to 650 mm, depending on the binding segment settings.
