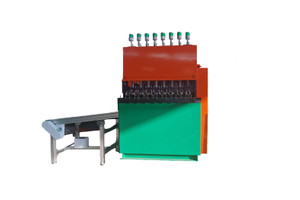

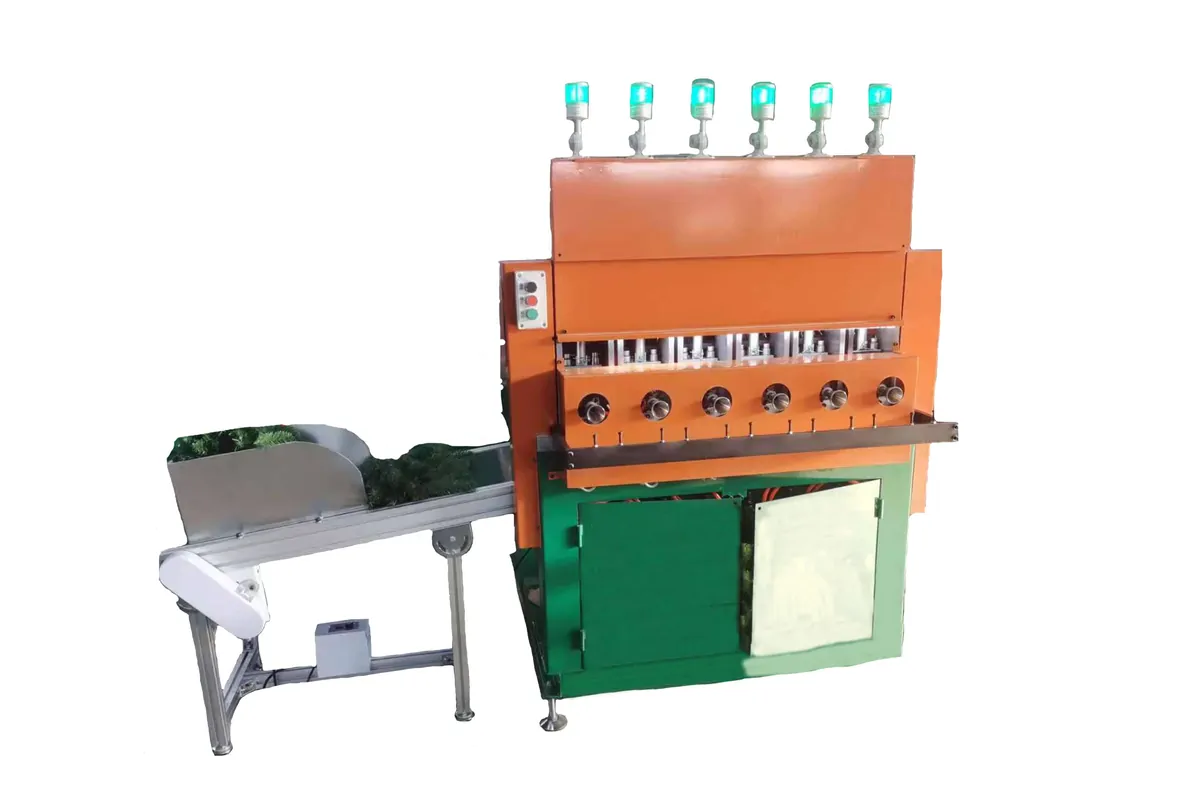

Automatic PVC Leaf Cutting Machine (6 Line)

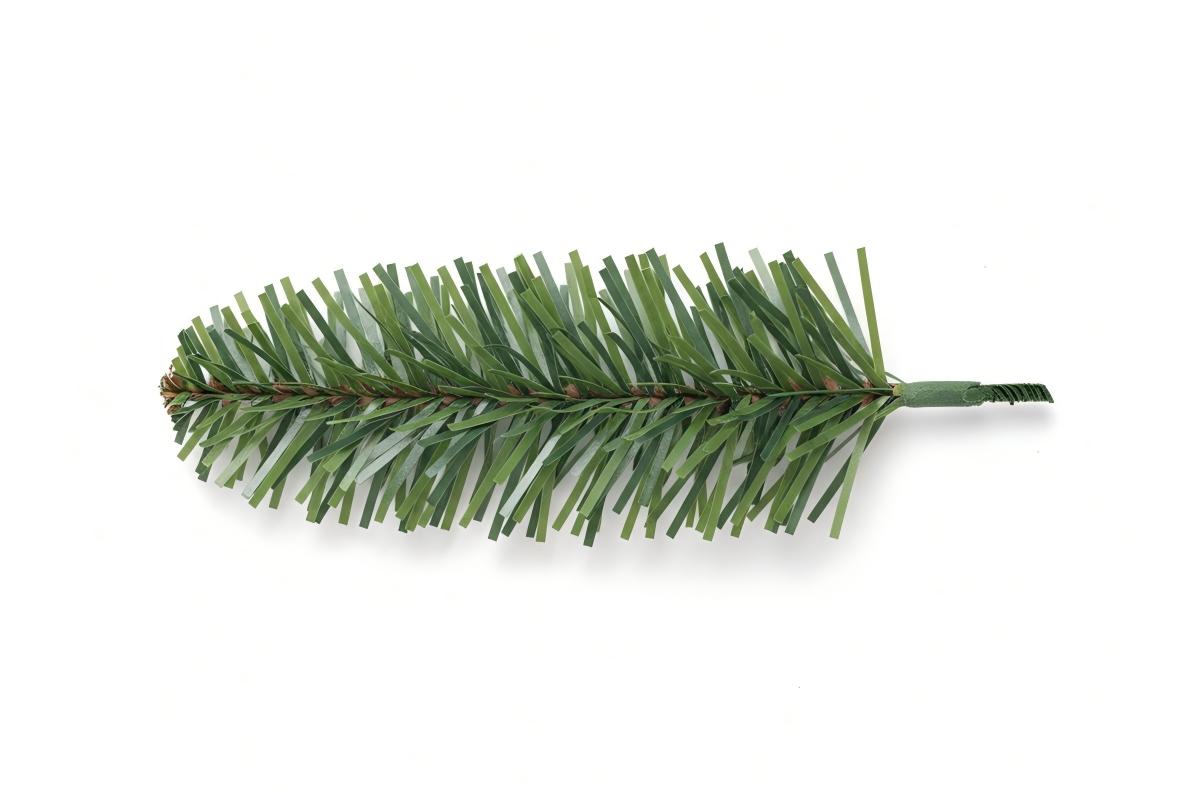

The automatic PVC leaf cutting machine (6 line) is a production machine used in artificial Christmas tree manufacturing to cut continuous PVC leaf strips into uniform branch segments of a set length. It receives the output from the leaf-drawing machine (where PVC film and wire are extruded into long, continuous leaf-on-wire strips) and cuts those strips into individual branch pieces - typically around 15-25 cm in length - ready for the next stage of production.

The "6 line" designation means this machine processes 6 leaf strip lines simultaneously. Each line feeds, measures, and cuts independently, so the machine produces 6 cut branch segments per cycle. This parallel operation is what makes it significantly faster than manual cutting or single-line cutting machines.

ONE Plastic supplies this machine as part of our Christmas tree production series, which covers the complete PVC Christmas tree production line from raw material to finished tree assembly. We supply this machine alongside the PVC film, leaf-drawing machines, branch-tying machines, and other equipment needed for artificial Christmas tree manufacturing.

Where This Machine Sits in the Production Line

Understanding the production workflow is important for buyers evaluating this machine:

Step 1 - Film Slitting: PVC film master rolls are slit into narrow rolls. (Machine: automatic PVC film cutting machine)

Step 2 - Leaf Drawing: Narrow PVC film rolls and wire are fed into a 4-line leaf-drawing machine, which extrudes the film into flat strips and twists them at high speed to create continuous leaf-on-wire output. (Machine: 4-line leaf-drawing machine)

Step 3 - Leaf Cutting (THIS MACHINE): The continuous leaf-on-wire strips from the leaf-drawing machine are fed into this 6-line automatic cutting machine, which cuts them into uniform branch segments of the specified length.

Step 4 - Branch Tying: The cut branch segments are bundled into larger composite branches using a branch-tying machine. (Machine: branch-tying machine)

Step 5 - Tree Assembly: Finished branches are inserted into trunk hanging rings and the base is attached to complete the artificial Christmas tree.

This machine handles Step 3. Its input is the continuous leaf strip output from Step 2, and its output is the individual cut branch segments that go into Step 4.

What "6 Line" Means

The number of lines refers to how many leaf strips the machine can process simultaneously in a single cutting cycle.

The 6-line configuration is the most popular choice for medium-to-large Christmas tree factories because it provides a strong balance of throughput and cost. It is fast enough to keep up with the output of a standard 4-line leaf-drawing machine without excessive idle time, while costing less than an 8-line unit.

Key Features

Adjustable Cutting Length: The branch segment length is adjustable to match your product specifications. Most Christmas tree manufacturers set the cutting length between 15 cm and 25 cm, but the machine can be configured for other lengths depending on your tree design.

Automatic Feeding and Cutting: Workers feed the continuous leaf strips into the machine, and the machine automatically measures and cuts them to the set length. This reduces manual labor and ensures consistent, uniform branch segments throughout the production run.

6 Simultaneous Lines: Processing 6 strips at once means the machine's output rate is approximately 6 times that of a single-line manual operation. This parallel processing is the primary productivity advantage of this machine.

Round and Sharp Head Options: The cutting mechanism can produce branch segments with either rounded or pointed (sharp) ends, depending on the tree design and branch attachment method used in the subsequent tying and assembly stages.

Compatible with Standard PVC Leaf Strip: This machine is designed to work with the PVC leaf-on-wire strips produced by standard 4-line leaf-drawing machines used in the Chinese Christmas tree manufacturing industry. If you are purchasing your leaf-drawing machine and cutting machine together, we can ensure compatibility between the two.

Specifications

Note: Detailed electrical specifications, machine dimensions, and weight are available upon request. These vary depending on the specific configuration and any customization applied to your order.

Who This Machine Is For

This machine is designed for artificial Christmas tree manufacturers who are either building a new PVC Christmas tree production line or upgrading an existing manual or lower-capacity cutting operation.

New factory setup: If you are setting up a new Christmas tree production line, ONE Plastic can supply this cutting machine as part of a complete equipment package including film cutting machines, leaf-drawing machines, branch-tying machines, and the PVC Christmas tree film raw material itself.

Capacity upgrade: If you currently use manual cutting or a 4-line cutting machine and need to increase throughput, upgrading to a 6-line automatic cutting machine is the most common next step. It can significantly reduce the labor required at the cutting stage while increasing output consistency.

Replacement: If your existing cutting machine needs replacement, this 6-line model is a direct replacement for most standard cutting machines used in Chinese-manufactured PVC Christmas tree production lines.

Why Choose ONE PLASTIC for Christmas Tree Production Equipment?

Complete Production Line Supplier: ONE Plastic is not just a machine vendor. We supply the complete Christmas tree production system - from PVC rigid film roll (the raw material) to all the machinery needed to convert it into finished Christmas trees. This means we can ensure compatibility between your raw material and your equipment.

Industry Experience: We have years of experience supplying Christmas tree production equipment and raw materials to factories across Asia, the Middle East, Eastern Europe, and Latin America. We understand the practical requirements of running a Christmas tree production line and can advise on machine selection, line layout, and material specification.

Installation Support: We provide installation guidance and technical support to help you set up and commission the machine at your facility.

ISO 9001 Certified: Our quality management system covers both raw material production and equipment manufacturing.

Packaging and Delivery

Frequently Asked Questions

What does this machine do?

It cuts continuous PVC leaf-on-wire strips (produced by a leaf-drawing machine) into individual branch segments of a uniform length. This is one of the core steps in artificial Christmas tree manufacturing.

What is the difference between 4-line, 6-line, and 8-line?

The number refers to how many leaf strip lines the machine processes simultaneously per cutting cycle. A 6-line machine cuts 6 strips at once, making it roughly 50% faster than a 4-line machine. The 6-line configuration is the most popular for medium-to-large production lines because it balances throughput and cost.

Can I adjust the cutting length?

Yes. The cutting length is adjustable to match your tree design specifications. Most factories set the length between 15 cm and 25 cm, but other lengths can be configured.

Is this machine compatible with my existing leaf-drawing machine?

This machine is designed to work with the standard PVC leaf-on-wire strip output from 4-line leaf-drawing machines commonly used in Chinese Christmas tree manufacturing. If you provide your current machine specifications, our technical team can confirm compatibility.

Do you supply just the cutting machine, or the whole production line?

We can supply either. We offer individual machines for factories that need to add or replace specific equipment, as well as complete turnkey production line packages for new factory setups. Contact our team to discuss your requirements.

Do you provide installation support?

Yes. We provide installation guidance and technical support. The specific scope of installation support depends on your location and order configuration - contact our team for details.
