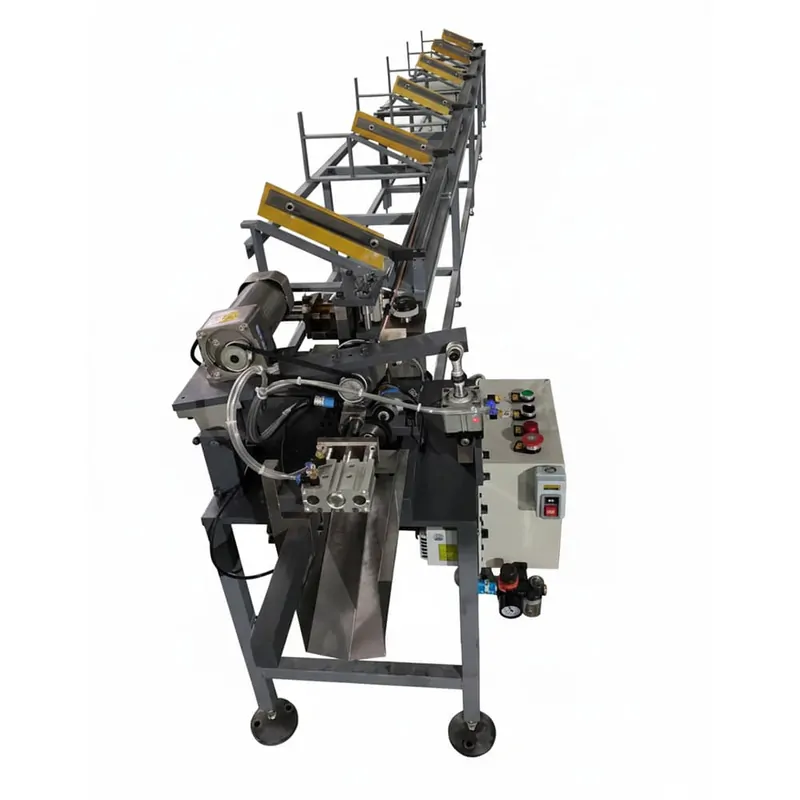

Automatic Pipe Cutting Machine for Christmas Tree Stand Pipes

The automatic loading and rolling pipe cutting machine is mainly used for cutting the iron pipes needed for the base of artificial Christmas trees, including the central pipe connecting to the trunk and the smaller pipes at the four bases. This machine can cut iron pipes with diameters of 6-25mm and lengths of 20-1000mm. The entire machine is fully automated, requiring only manual loading and unloading.

Model:
Pipe Cutting Machine
Brand:
ONE PLASTIC
Code:
RY-812
Material:
Metal
package:
Wooden box
Size:
7500*500*750mm

Weight:	400KG
Power:	0.75KW
Availability:



Inquire

Product Description

The automatic loading and rolling pipe cutting machine (Model RY-812) is the equipment that produces the iron pipes used to weld the base of an artificial Christmas tree - both the central pipe that connects to the trunk, and the smaller pipes that form the four legs of the tree base. It is fully automated for the cutting cycle, requiring only manual loading and unloading of the raw pipe stock.

This page covers the pipe cutting machine specifically. It is part of our complete Christmas tree production series of machinery, and produces one specific component group: the base-frame iron pipes that get welded together and painted to form the tree stand. For other equipment in the production line - branch binding, leaf cutting, wire processing - see the related machine pages linked throughout this page.

ONE PLASTIC manufactures this pipe cutting machine for artificial Christmas tree factories worldwide.

What This Pipe Cutting Machine Does

In artificial Christmas tree production, the tree base is a welded metal frame consisting of:

One central iron pipe that connects upward to the trunk
Four smaller iron pipes that splay outward as the four legs of the base

The pipe cutting machine produces these pipes from continuous iron or steel pipe stock. It pulls the raw pipe in, advances it to the programmed length, and uses a rolling tungsten steel saw blade to cut the pipe cleanly to specification. The cycle then repeats automatically.

The cut pipes are then bent (by a separate machine), welded into the base frame (by a welding arm or operator), and painted - typically in dark green - to produce the finished tree stand that the consumer sees as the base of the artificial Christmas tree.

Why Christmas Tree Factories Use Automatic Pipe Cutting

Consistent Pipe Length for Tree Bases: Every tree of the same model needs identical base pipe lengths so the welded base sits flat and stable. Manual cutting introduces length variation that shows up as wobble or uneven legs in the finished product. The automatic machine controls cutting accuracy to +/-0.2-0.5mm.

Lower Labor Dependency: The cutting cycle is automated. One operator handles loading the raw pipe stock and unloading the cut pieces - the actual cutting requires no operator intervention.

Faster Batch Cutting: The machine processes one cut roughly every 1.8-2 seconds, equivalent to approximately 6 meters of iron pipe per minute. For factories producing thousands of tree bases per season, this throughput materially shortens the base-cutting stage of production.

Better Fit for High-Volume Seasonal Production: Christmas tree manufacturing is heavily seasonal - most production happens in a compressed window between roughly March and August. Automatic pipe cutting allows factories to hit that seasonal volume without scaling up cutting labor proportionally.

Application

Input Pipe, Output Length, and Cutting Accuracy

The machine works with the following pipe and cutting specifications (taken from the actual machine spec sheet):

Parameter	Specification
Model	RY-812
Cut Diameter Range	6 - 25 mm
Cut Length Range	20 - 1000 mm
Cutting Wall Thickness	0.2 - 2 mm
Cutting Accuracy	+/-0.2 - 0.5 mm
Cycle Time	Approximately 1.8 - 2 seconds per cut
Throughput	Approximately 6 meters of iron pipe per minute
Motor	Servo motor, three-phase power
Motor Power	0.75 kW
Saw Blade	100 mm diameter x 27 mm inner hole x 1.0 mm wall thickness
Saw Blade Material	Tungsten steel
Machine Dimensions	7500 x 500 x 750 mm
Machine Weight	400 kg
Material Handled	Iron pipe / steel pipe
Packaging	Wooden crate

The diameter range of 6-25 mm covers both the central trunk-connecting pipe and the four smaller leg pipes typical of artificial Christmas tree bases. The 20-1000 mm length range covers the full size span from small tabletop tree bases through to large commercial-scale tree stands.

Automatic Loading and Rolling Cutting Workflow

The machine's operation cycle:

Pipe Loading: Raw iron or steel pipe is loaded onto the machine's feed station. This step is manual.
Automatic Feeding: The machine pulls the pipe forward to the programmed cut length.
Positioning: The pipe is held in place by the rolling clamp mechanism.
Rolling Cutting: The tungsten steel saw blade rotates against the pipe surface, cutting through the wall while the pipe rolls in place. Rolling cutting (rather than chop cutting) produces a cleaner edge with less burr and lower blade wear.
Output: The cut pipe section is released and the machine returns to feed the next length.
Repeat: The cycle repeats continuously until the loaded pipe stock is fully processed.

After all pipes for a base set are cut, they go to the bending and welding stations downstream. Then the welded base is painted (typically dark green) to match the tree trunk appearance.

Advantages Of Pipe Cutting Machine

Supports multiple pipe

This machine can accommodate most steel pipe diameters, and it can cut steel pipes with diameters ranging from 6 to 25 mm and wall thicknesses ranging from 0.2 to 2 mm.

High-Efficiency Cutting

The machine has a very high production efficiency, typically processing a section of placed steel pipe in about 2 seconds. This machine can process approximately 15 meters of iron pipe per minute.

High-Precision Cutting

The steel pipes cut by the automatic loading and rolling machine have very small errors in precision, usually controlled to around ±0.5mm, so you don’t need to do secondary processing.

Pipe Cutting Machine vs Wire Cutting Machine

These two machines are sometimes confused because both cut metal stock to length, but they handle very different materials:

Factor	Pipe Cutting Machine (this page)	Wire Straightening and Cutting Machine
Input Material	Hollow iron or steel pipe	Solid iron wire
Diameter Range	6 - 25 mm	2 - 6 mm
Cutting Method	Rolling cut with tungsten steel saw blade	Cut from continuous wire spool
Output	Pipe sections for tree base welding	Wire pieces for branches or frame components
Where Used in Production	Tree stand / base frame	Branch wire, hook wire, frame wire

If you need to cut hollow pipe for tree stands and base frames, this is the right machine. If you need to cut solid wire for branch or hook production, see the wire straightening and cutting machine instead.

Where This Machine Fits in the Christmas Tree Production Line

A complete artificial Christmas tree production cell typically includes machines for several different component groups. The pipe cutting machine specifically handles the base / stand component:

Component Group	Equipment Involved
Branches (PVC)	PVC film cutting -> leaf drawing -> 8-line leaf cutting -> branch binding
Branches (PE)	PE injection molding + Robot Arm -> branch binding
Wire Components	Wire straightening and cutting machine
Base / Stand	This pipe cutting machine -> bending -> welding -> painting
Final Assembly	Branches + base assembled with hubs and rivets

If you are building a complete production line, this machine sits in the base/stand component stream rather than the branch production stream.

Packaging And Shipping

Item	Details
Packaging	Wooden crate with plastic film wrap to prevent moisture damage
Internal Protection	Small wooden blocks to secure the machine; plastic strapping to prevent tilting
Shipping	Sea freight (FCL recommended due to machine size of 7500 x 500 x 750 mm)
Spare Parts	Common consumable parts can be packed inside the crate to avoid local sourcing issues
Custom Packaging	Available on request

For a production line that includes other equipment in addition to this pipe cutter, packaging and shipping can typically be consolidated.

Why Choose ONE PLASTIC?

Christmas Tree Industry Specialist: ONE PLASTIC focuses on the artificial Christmas tree supply chain. We supply not just this pipe cutting machine, but the full range of equipment needed to produce a tree from raw materials - including PVC Christmas tree film, branch binding machines, leaf cutting equipment, and assembly hardware.

Production-Line Matching: When you buy this pipe cutting machine alongside other equipment from us, the line components are designed to integrate. This avoids the problem of mismatched throughput between machines that comes from sourcing equipment from multiple suppliers.

Spare Parts Support: Wear parts (saw blades, mechanical components subject to repeated motion) are available. We typically pack consumables inside the original shipping crate so factories without local industrial supply chains have spares on hand.

Installation Guidance: Installation and commissioning support is available for buyers setting up new production lines.

Export Packaging: Wooden crate packaging is designed for international sea freight, with internal bracing and moisture protection.

Frequently Asked Questions

What types of iron pipe can this machine cut?

The machine is designed for cutting iron and steel pipe used for artificial Christmas tree bases and trunk connectors. It supports pipe diameters from 6 to 25 mm and pipe lengths from 20 to 1000 mm, with wall thicknesses from 0.2 to 2 mm.

Is the machine fully automatic?

The cutting cycle is fully automatic - feeding, positioning, rolling cutting, and output all happen without operator intervention. Pipe loading and unloading at the start and end of each pipe stock are manual.

What is the cutting accuracy?

Cutting accuracy is controlled to within +/-0.2 to +/-0.5 mm, which is consistent enough for Christmas tree base production without secondary processing.

What is the production speed?

The machine processes approximately 6 meters of iron pipe per minute, equivalent to one cut every 1.8 to 2 seconds.

Can this machine be used for production beyond Christmas trees?

The machine is built specifically for the Christmas tree base production application within our equipment range. Pipe cutting requirements outside this dimensional range (6-25 mm diameter, 0.2-2 mm wall thickness) may not be a fit. If you have a specific application outside Christmas tree production, contact us to discuss whether the machine suits your requirements.

Can ONE PLASTIC supply other Christmas tree production equipment?

Yes. We supply the full range of artificial Christmas tree production machinery, including branch binding machines, PVC leaf cutting machines, wire processing equipment, PE injection molding, and assembly hardware. For a complete production line quote, contact our team with your target output and equipment list.

What is the lead time?

Lead time depends on current production scheduling and order configuration. Contact us with your target delivery date for a specific timeline.

Get a Quote

Looking for an automatic pipe cutting machine for your artificial Christmas tree production line?

Tell Us Your Setup - Existing line equipment, target tree size range, and production volume
Specify Pipe Requirements - Pipe diameter, wall thickness, and cut length range
Ask About Combined Quotes - We can quote pipe cutting alongside branch production and assembly equipment
