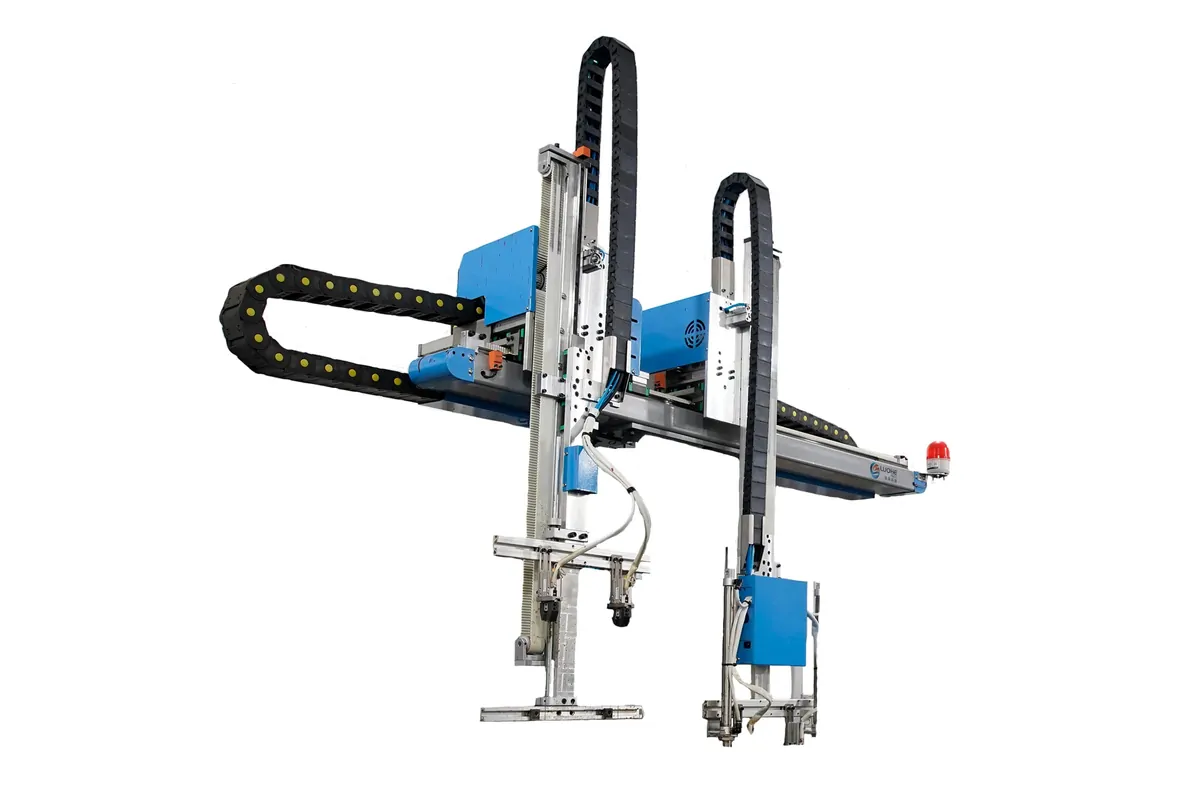

Robot Arm for PE Injection Molding Christmas Tree Leaf Production

The robot arm in a PE Christmas tree production line is the component that picks up newly molded PE branches from the injection mold, transfers them through the root-spraying station, and places them onto the staging rack for downstream bundling. It is what turns a standalone PE injection machine into a continuous, low-labor branch production cell.

This page is about robot arms specifically configured for PE injection molding Christmas tree production. For a broader overview of our Christmas tree production machinery, see our main Christmas tree production series page. If you are looking for the PE injection machine that this robot arm is typically paired with, see our PE injection molding machine for Christmas trees page.

ONE PLASTIC supplies robot arms as part of complete PE Christmas tree production lines or as add-on automation for existing injection molding setups.

What This Robot Arm Does in a PE Tree Production Line

PE artificial Christmas tree branches are produced by injection molding PE pellets into branch-shaped molds. Once each cycle finishes, the molded branch needs to be removed from the mold and moved through additional processing steps before it can be packed. Without automation, this is a manual pick-and-place job that requires an operator at each machine.

The robot arm automates this workflow:

1. Pick from Mold: After the mold opens at the end of an injection cycle, the robot arm reaches in and grips the newly molded PE branch.

2. Transfer to Root Spraying: The arm carries the branch to the root-painting or spraying station, where the branch base is coated to match the trunk color.

3. Place on Rack: After spraying, the arm places the finished branch onto a staging rack, where workers collect it for the next production step (branch tying).

4. Return and Repeat: The arm returns to the mold position in time for the next injection cycle.

The result is a continuous, single-operator production cell - one worker can oversee multiple machines instead of manually handling every branch. For background on how this fits into the larger PVC and PE tree production workflow, see our article on the production process of artificial Christmas trees.

Why Automation Matters in PE Christmas Tree Production

PE tree branch production is a cycle-time game. Each injection cycle takes roughly 20-40 seconds depending on branch size and mold configuration. At that pace, a manual operator is the bottleneck:

• The operator has to be at the machine within seconds of mold opening

• Handling hot, freshly molded branches is uncomfortable and slow

• Consistency of pick-and-place affects spraying quality and branch orientation

• Operator fatigue causes dropped cycle times over a full production shift

A robot arm solves all of these problems:

Consistent Cycle Times: The arm completes pick-and-place in the same time every cycle. No fatigue, no breaks, no slow-down toward the end of a shift.

Reduced Labor Cost: One operator can oversee 4-6 machines equipped with robot arms, compared to one operator per machine for manual handling.

Better Spraying Quality: The arm presents the branch to the spraying station in the same orientation every time, producing more consistent root coloring.

Safer Operation: No human hands near the mold area during cycle operation. This reduces both injury risk and the need for complex safety interlocks that slow manual handling.

Higher Total Output: Across a full production shift, an automated cell typically produces more branches than a manually operated machine at the same cycle time, simply because there are no human-caused delays.

Typical Integration Setup

A standard PE Christmas tree injection cell with robot arm includes:

The robot arm communicates with the injection machine's control system so that pick timing is synchronized with mold opening. Most installations can be integrated with standard injection machine signal outputs - no custom PLC programming required on the buyer's side.

For the injection mold that shapes the branch, see our PE injection mold for Christmas tree branches page.

Specifications

Robot arm specifications vary depending on the size of the PE branches being produced and the layout of the surrounding equipment. Typical parameters include:

Exact specifications are configured per installation based on your injection machine size, mold layout, and production floor constraints. We recommend discussing your setup with our engineering team before ordering so the arm is sized correctly for your line.

Packaging And Shipping

Packaging

Generally, we use wooden crates to pack the machines. We place pallets at the bottom of the crates for easy transport, and reinforce the bottom inside the crates with wooden boards to secure the machine. We also include some easily damaged parts inside the crates to ensure long-term machine use.Of course, if you have special packaging requirements, we can also customize packaging for you.

Shipping

The machine supports both air and rail transport; you can choose the delivery method that best suits your needs. We will notify the factory to begin production upon order confirmation. After completion, the machine will be tested, and once confirmed to be working correctly, it will be packed and delivered to the designated location. If you have a local agent in your area, we can also deliver the machine to them, who will handle the remaining shipping procedures.

Who Buys This

PE Christmas Tree Manufacturers: Factories producing PE artificial Christmas trees who want to automate the branch injection molding step. This is the primary customer.

Christmas Tree Factories Upgrading from PVC to PE: Producers who are transitioning from traditional PVC Christmas tree production to PE injection molding typically need a complete PE cell, including the injection machine, mold, and robot arm.

Contract Injection Molders: Facilities that produce PE tree branches on contract for tree brands, who need consistent output and reduced labor cost.

Expanding Production Lines: Existing PE tree factories adding additional injection cells to meet seasonal demand increases.

Why Choose ONE PLASTIC?

Christmas Tree Production Specialist: ONE PLASTIC supplies the full range of artificial Christmas tree production equipment and raw materials - from PVC Christmas tree film to machinery and assembly hardware. We understand how robot arms fit into a working PE tree production line, not just as an isolated piece of automation.

Integrated Supply: If you are setting up a new PE Christmas tree line, we can supply the injection machine, mold, robot arm, and downstream equipment together - ensuring compatibility and avoiding integration headaches.

Ongoing Technical Support: Installation guidance and operator training are available for customers setting up new production cells. For existing factories adding a robot arm to current injection machines, we provide integration support to match the arm to your existing equipment.

Competitive Pricing on Complete Cells: Sourcing the injection machine, mold, and robot arm from a single supplier typically provides better pricing than sourcing each component separately.

Frequently Asked Questions

Can this robot arm work with any PE injection machine, or only yours?

The robot arm is designed to work with standard PE injection molding machines using common I/O signal protocols. It works best with our PE injection molding machine for Christmas trees, which is pre-configured for integration. For third-party injection machines, integration is typically possible but requires a compatibility check on signal protocols and platen dimensions. Contact us with your injection machine details for confirmation.

How long does installation take?

For a complete cell purchased as a package, typical installation and commissioning time is 3-7 days on-site, depending on local conditions. For adding a robot arm to an existing injection machine, installation is typically faster but requires more up-front engineering work to match the arm to the existing setup.

Can one robot arm serve multiple injection machines?

No. Each robot arm is typically dedicated to one injection machine because pick-and-place timing is synchronized with the injection cycle. If you need to automate multiple machines, each machine requires its own robot arm.

Is operator training required?

Yes, but the training needed is basic - how to start and stop the cell, how to load different branch programs, and how to respond to typical alarms. Most operators learn the essentials in one day. We provide operation manuals in multiple languages to support training.

Can I see the cell in operation before buying?

Yes. We can arrange a factory visit or provide video of an operating PE Christmas tree production cell. For larger orders, sample production runs using your target branch design can be arranged before shipment.

What is the lead time?

Lead time depends on order configuration and current production schedule. For a complete cell, typical lead time is 45-90 days from order confirmation. For standalone robot arms added to existing equipment, lead time is typically shorter. Contact us for a specific timeline based on your order.

Get a Quote

Looking to automate your PE Christmas tree branch production?

• Tell Us Your Setup - Injection machine model, branch size, and production volume

• Request a Complete Cell Quote - Injection machine, mold, robot arm, and downstream equipment

• Ask About Integration - If you have existing injection machines, we can discuss compatibility
